Trigger Regulator 500 Series

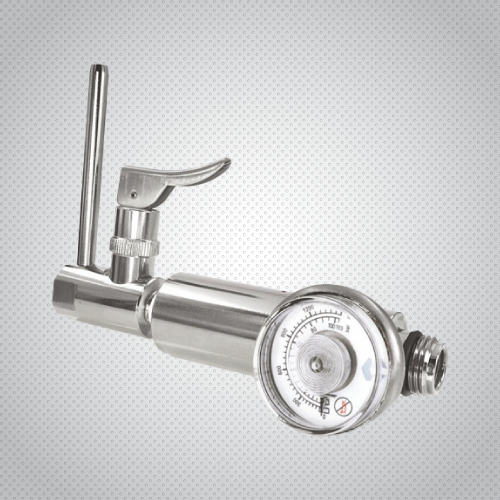

Model 500 Trigger Regulator-C10-Brass NP
The Trigger Regulator is used for calibration gases and handheld gas detectors where the regulator will dispense gas once the trigger is pressed.
Materials of Construction
| Part | Material |
|---|---|
| Body | Brass Nickel Plated |
| CAP | Brass Nickel Plated |
| Piston | Brass |
| Trigger | Stainless Steel |
| Seats and Seals | Viton, Buna-N, Teflon |
| Flow | Fixed as per customers requirement - 0.1 to 8.0 L/Mn |
Model Details
| Model | Maximum Inlet Pressure | For Reactive Gases and/or Non-reactive Gases | Inlet Connection | Outlet Connection | Outlet Pressure | Gauge | Weight Kg |
|---|---|---|---|---|---|---|---|
| 500 | 0 to 1200 psig / 83 bar | Brass NP for non-reactive gases | 5/8" x 18UN C10 | 6 MM Straight Tube | 60 psig - 4.1bar | Brass 0 to 1500 psig 103 bar | 0.400 Kg |
Warranty:All regulators are warranted for 12 months.
| Model | 500 |
|---|---|
| Working Pressure | 0 to 1200 psig/ 83 bar |
| For Reactive Gases and/or Non-reactive Gases | Brass NP for non-reactive gases |
| Inlet Connection | 5/8" x 18UN C10 |
| Outlet Connection | 6 MM Straight Tube |
| Outlet Pressure | 60 psig - 4.1bar |
| Gauge | Brass 0 to 1500 psig 103 bar |
| Weight Kg | 0.400 Kg |
