Push Button Regulator 300 Series

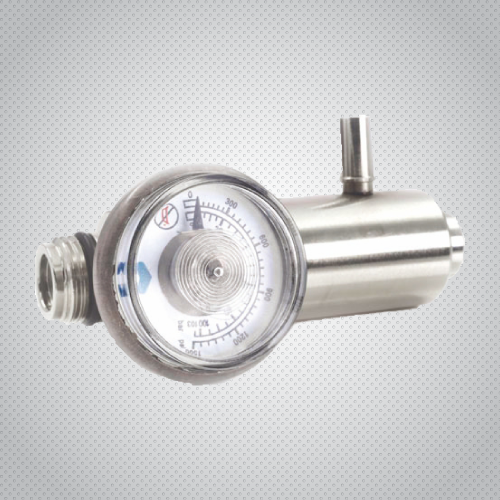

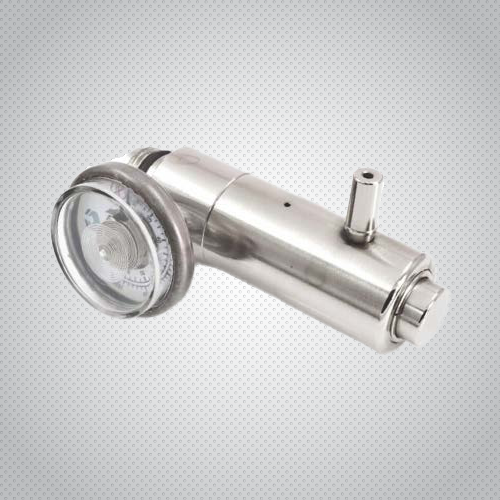

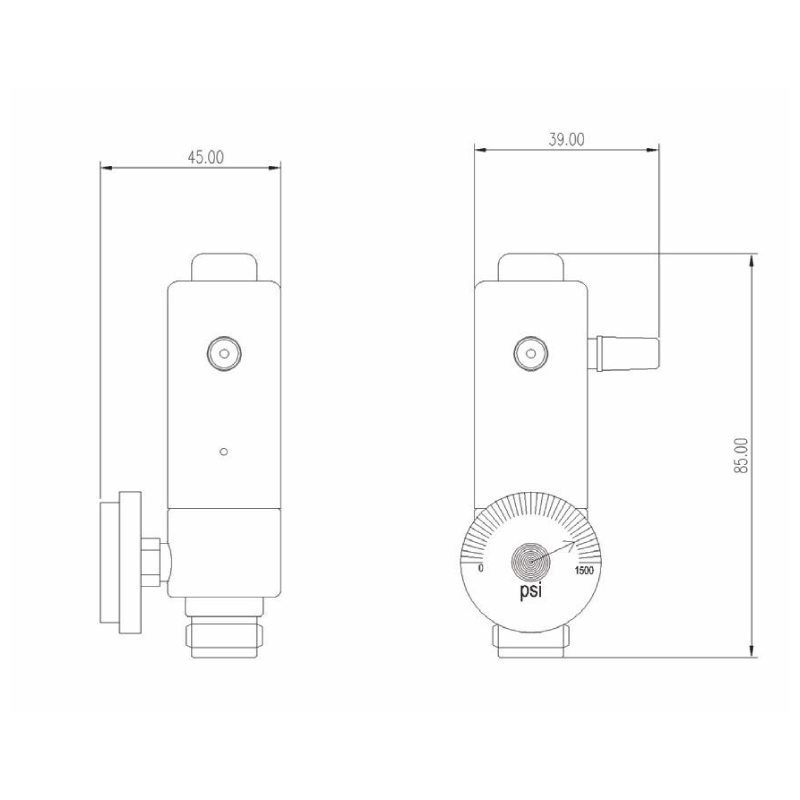

Model 301 Push Button Regulator C10 Brass NP
The Push Button Regulator allows the end user to manually draw gas at a constant flow, at a specific time from the cylinder with negligible flow loss. They are used for bump testing of hand- held gas detectors.
Materials of Construction
| Part | Material |
|---|---|
| Body | Brass Nickel Plated |
| CAP | Brass Nickel Plated |
| Piston | Brass |
| Button | Brass Nickel Plated |
| Seats and Seals | Viton, Buna-N,Teflon |
| Flow | Fixed as per customers requirement - 0.1 to 8.0 L/Mn |
Model Details
| Model | Maximum Inlet Pressure | For Reactive Gases and/or Non-reactive Gases | Inlet Connection | Outlet Connection | Outlet Pressure | Gauge | Weight Kg |
|---|---|---|---|---|---|---|---|
| 301 | 0 to 1200 psig / 83 bar | Brass NP for non-reactive gases | 5/8" x 18UN | 6 MM Taper | 60 psig - 4.1bar | Brass 0 to 1500 psig 103 bar | 0.330 Kg |
Warranty:All regulators are warranted for 12 months.
| Model | 301 |
|---|---|
| Working Pressure | 0 to 1200 psig/ 83 bar |
| For Reactive Gases and/or Non-reactive Gases | Brass NP for non-reactive gases |
| Inlet Connection | 5/8" x 18UN |
| Outlet Connection | 6 MM Taper |
| Outlet Pressure | 60 psig - 4.1bar |
| Gauge | Brass 0 to 1500 psig 103 bar |
| Weight Kg | 0.330 Kg |

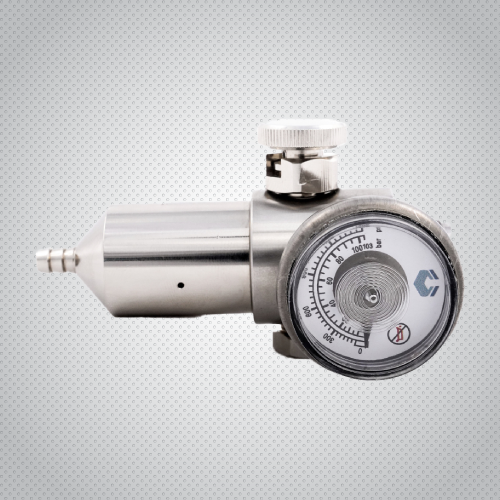

Model 302 Push Type Regulator-C10-Brass NP
The Push Type Regulator allows the end user to manually draw gas at a constant flow, at a specific time from the cylinder with negligible flow loss. They are used for bump testing of hand- held gas detectors.
Materials of Construction
| Part | Material |
|---|---|
| Body | Stainless Steel |
| CAP | Brass Nickel Plated |
| Piston | Brass |
| Button | Brass Nickel Plated |
| Seats and Seals | Viton, HNT |
| Flow | Fixed as per customers requirement - 0.1 to 8.0 L/Mn |
Model Details
| Model | Maximum Inlet Pressure | For Reactive Gases and/or Non-reactive Gases | Inlet Connection | Outlet Connection | Outlet Pressure | Gauge | Weight Kg |
|---|---|---|---|---|---|---|---|
| 302 | 0 to 1200 psig / 83 bar | Brass NP for non-reactive gases | 5/8" x 18UN - C10 | 3/16" Barb | 60 psig - 4.1 bar | Brass N.P. 0 to 1500 psig / 103 bar | 0.326 Kg |
Warranty:All regulators are warranted for 12 months.
| Model | 302 |
|---|---|
| Working Pressure | 0 to 1200 psig/ 83 bar |
| For Reactive Gases and/or Non-reactive Gases | Brass NP for non-reactive gases |
| Inlet Connection | 5/8" x 18UN - ClO |
| Outlet Connection | 3/16" Barb |
| Outlet Pressure | 60 psig - 4.1 bar |
| Gauge | Brass N.P. 0 to 1500 psig / 103 bar |
| Weight Kg | 0.326 Kg |

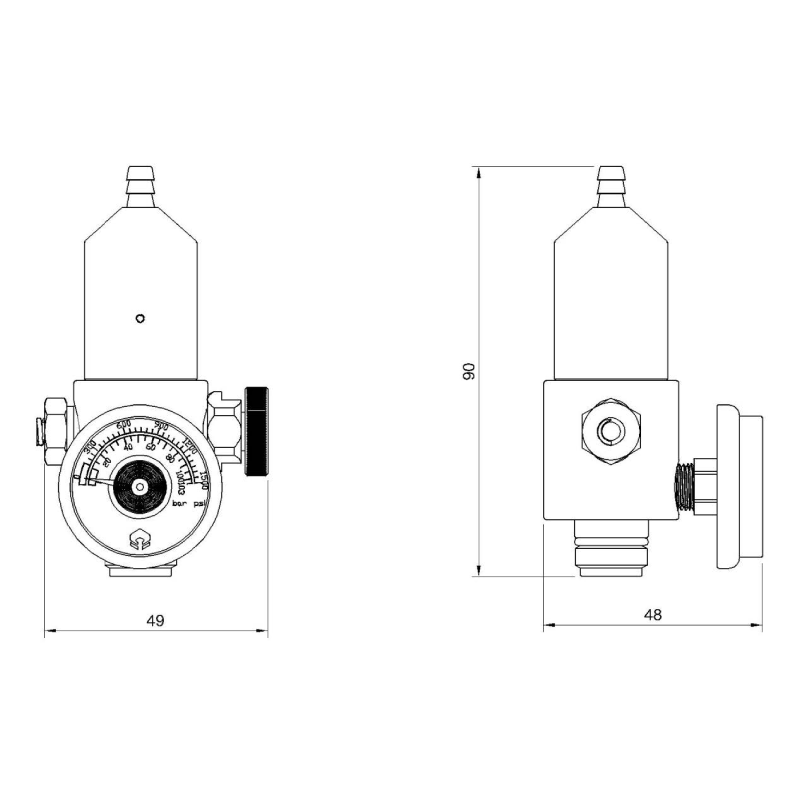

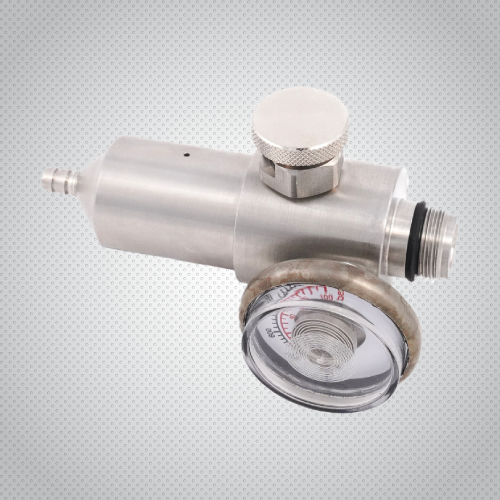

Model 303 Push Type Regulator-C10-SS
The Push Type Regulator allows the end user to manually draw gas at a constant flow, at a specific time from the cylinder with negligible flow loss. They are used for bump testing of hand- held gas detectors.
Materials of Construction
| Part | Material |
|---|---|
| Body | Stainless Steel |
| CAP | Stainless Steel |
| Piston | Stainless Steel |
| Button | Brass Nickel Plated |
| Seats and Seals | Viton |
| Flow | Fixed as per customers requirement - 0.1 to 8.0 L/Mn |
Model Details
| Model | Maximum Inlet Pressure | For Reactive Gases and/or Non-reactive Gases | Inlet Connection | Outlet Connection | Outlet Pressure | Gauge | Weight Kg |
|---|---|---|---|---|---|---|---|
| 303 | 0 to 1200 psig / 83 bar | Stainless Steel for reactive gases | 5/8" x 18UN C10 | 3/16" Barb | 60 psig - 4.1 bar | Stainless Steel 0 to 1500 psig / 103 bar | 0.326 Kg |
Warranty:All regulators are warranted for 12 months.
| Model | 303 |
|---|---|
| Working Pressure | 0 to 1200 psig / 83 bar |
| For Reactive Gases and/or Non-reactive Gases | Stainless Steel for reactive gases |
| Inlet Connection | 5/8" x 18UN C10 |
| Outlet Connection | 3/16" Barb |
| Outlet Pressure | 60 psig - 4.1 bar |
| Gauge | Stainless Steel 0 to 1500 psig / 103 bar |
| Weight Kg | 0.326 Kg |
