Solenoid Regulator 600 Series

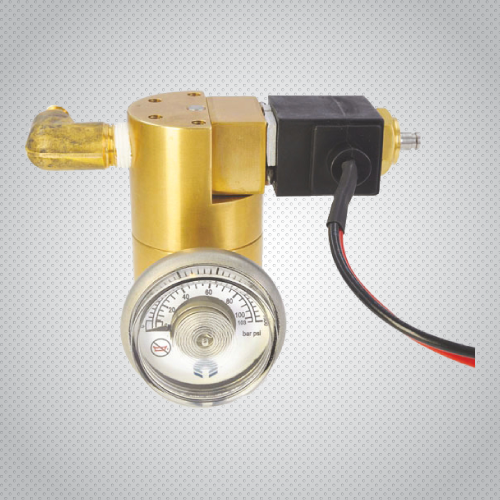

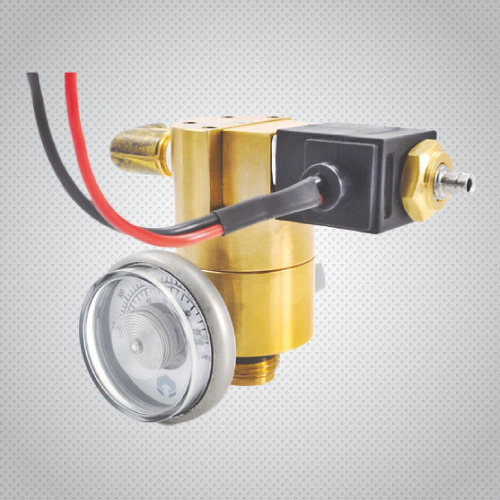

Model 600 Solenoid Regulator C10 Brass
The solenoid regulators are solenoid operated and used with dry gas compact machines.
Materials of Construction
| Part | Material |
|---|---|
| Body | Brass Nickel Plated |
| CAP | Brass Nickel Plated |
| Piston | Brass |
| Barb Hose | Stainless Steel |
| Seats and Seals | Viton, Buna-N, Teflon |
| Solenoid Coil | 12VDC |
| Flow | Fixed as per customers requirement - 0.1 to 10.0 L/Mn |
Model Details
| Model | Maximum Inlet Pressure | For Reactive Gases and/or Non-reactive Gases | Inlet Connection | Outlet Connection | Outlet Pressure | Gauge | Weight Kg |
|---|---|---|---|---|---|---|---|
| 600 | 0 to 1200 psig | Brass NP for non-reactive gases | C10 5/8" x 18UN | 3/16" Hose Barb | 50 psig | Brass 0 to 1500 psig 103 bar | 0.376 Kg |
Warranty:All regulators are warranted for 12 months.
| Model | 600 |
|---|---|
| Maximum Inlet Pressure | 0 to 1200 psig |
| For Reactive Gases and/or Non-reactive Gases | Brass NP for non-reactive gases |
| Inlet Connection | C10 5/8"x18UN |
| Outlet Connection | 3/16" Hose Barb |
| Outlet Pressure | 50 psig |
| Gauge | Brass 0 to 1500 psig 103 bar |
| Weight Kg | 0.376 Kg |
