Integrated C10 Valve 1300 Series

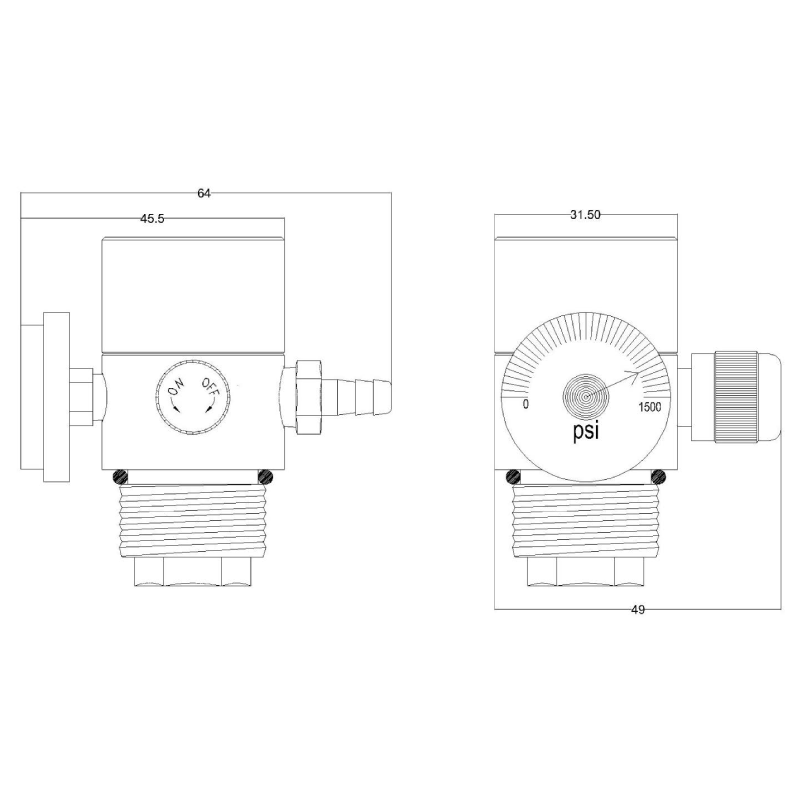

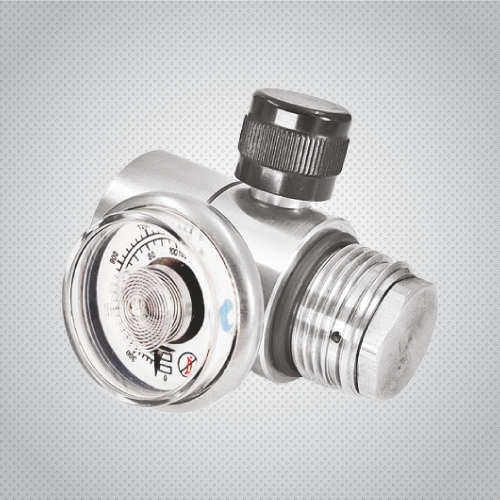

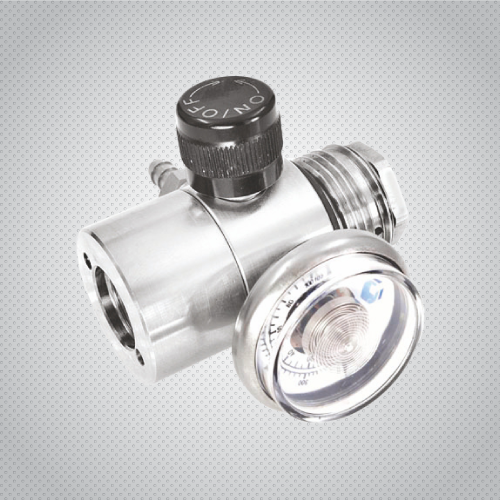

Model 1300 Integrated C10 Valve Stainless Steel
The Integrated C10 Valve is a combination of a ClO valve and a single stage pressure reducing design. This product can be directly connected to a 17L and 34L cylinders.
Materials of Construction
| Part | Material |
|---|---|
| Body | Stainless Steel |
| Valve Pin | Stainless Steel |
| Valve Seat | Stainless Steel |
| Piston | Stainless Steel |
| Seats and Seals | Viton, Teflon |
Model Details
| Model | Working Pressure | For Reactive Gases and/or Non-reactive Gases | Inlet Connection | Outlet Connection | Weight Kg |
|---|---|---|---|---|---|
| 1300 | 0 to 1200 psig / 83 bar | Stainless Steel for Reactive and Non-reactive gases | 1" x 14UN | 3/16" Barb Hose or 1/18" FNPT | 0.258 Kg |
Warranty:All regulators are warranted for 12 months.
| Model | 1300 |
|---|---|
| Working Pressure | 0 to 1200 psig / 83 bar |
| For Reactive Gases and/or Non-reactive Gases | Stainless Steel for Reactive and Non-reactive gases |
| Inlet Connection | 1" x 14UN |
| Outlet Connection | 3/16" Barb Hose or 1/18" FNPT |
| Weight Kg | 0.258 Kg |
