Lecture Bottle Valves 800 Series

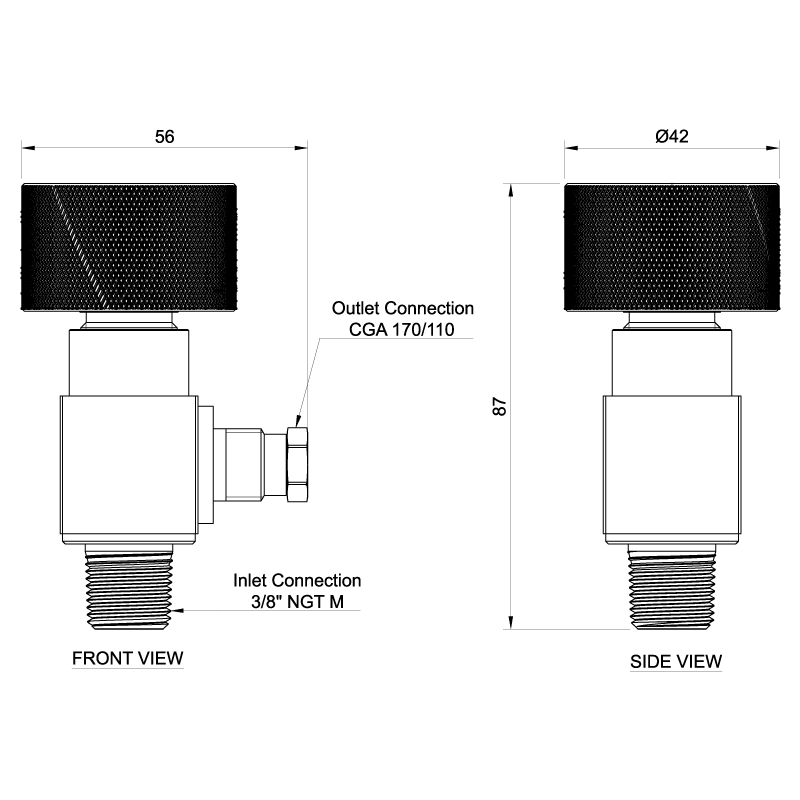

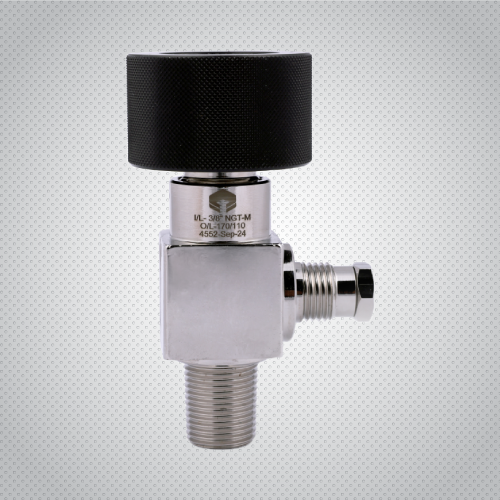

Model 801 LB Valve 3/8" NGT M-CGA 170/110
The lecture bottle control valve is a valve used for lecture bottle cylinders. It utilizes an On/OFF mechanism and NGT threads which are machined with utmost precision.
Materials of Construction
| Part | Material |
|---|---|
| Body | Brass NP |
| Seat | PCTFE |
| Spring | Stainless Steel 316 |
| Diaphragm | Stainless Steel 316 |
| Bonnet | Brass NP |
| Lower Stem | Stainless Steel 316L |
| Upper Stem | Stainless Steel 416 Zinc plated |
| Knob | Aluminum Black Anodized |
Model Details
| Model | Maximum Inlet Pressure | Inlet Connection | Outlet Connection | Weight Kg |
|---|---|---|---|---|
| 801 | 3000 psi or 200 Bar | 3/8" NGT M | CGA 170/110 | 0.352 Kg |
Warranty:All valves are warranted for 12 months.
| Model | 801 |
|---|---|
| Maximum Inlet Pressure | 3000 psi or 200 Bar |
| Inlet Connection | 3/8" NGT M |
| Outlet Connection | CGA 170/110 |
| Weight Kg | 0.352Kg |

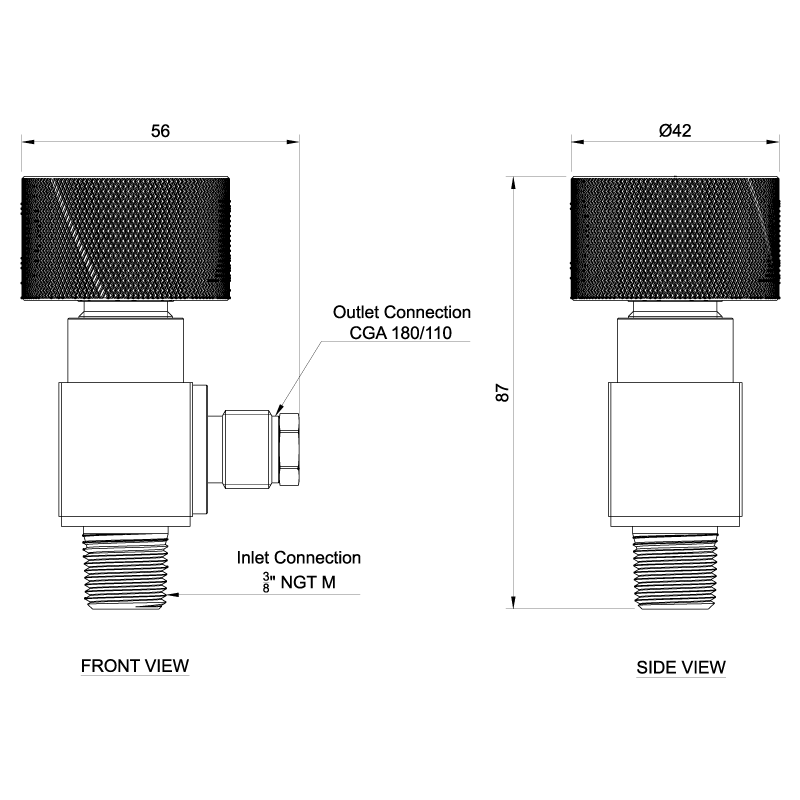

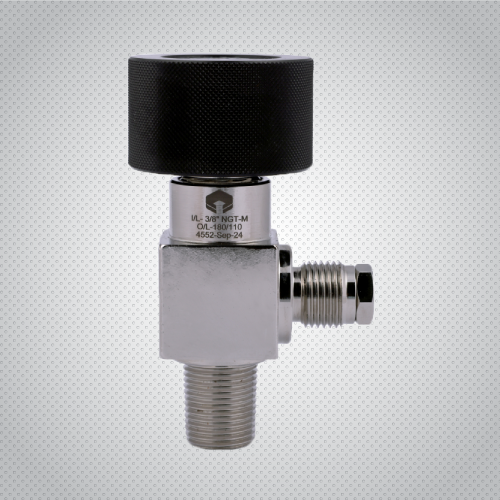

Model 802 LB Valve 3/8" NGT M-CGA 180/110
The lecture bottle control valve is a valve used for lecture bottle cylinders. It utilizes an On/OFF mechanism and NGT threads which are machined with utmost precision.
Materials of Construction
| Part | Material |
|---|---|
| Body | Brass NP |
| Seat | PCTFE |
| Spring | Stainless Steel 316 |
| Diaphragm | Stainless Steel 316 |
| Bonnet | Brass NP |
| Lower Stem | Stainless Steel 316L |
| Upper Stem | Stainless Steel 416 Zinc plated |
| Knob | Aluminum Black Anodized |
Model Details
| Model | Maximum Inlet Pressure | Inlet Connection | Outlet Connection | Weight Kg |
|---|---|---|---|---|
| 802 | 3000 psi or 200 Bar | 3/8" NGT M | CGA 180/110 | 0.355 Kg |
Warranty:All valves are warranted for 12 months.
| Model | 802 |
|---|---|
| Maximum Inlet Pressure | 3000 psi or 200 Bar |
| Inlet Connection | 3/8" NGT M |
| Outlet Connection | CGA 180/110 |
| Weight Kg | 0.355 Kg |

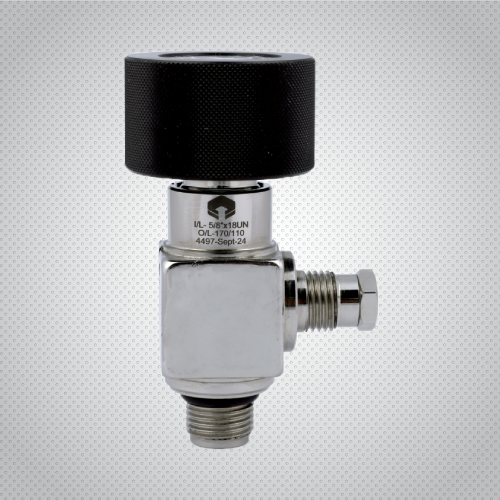

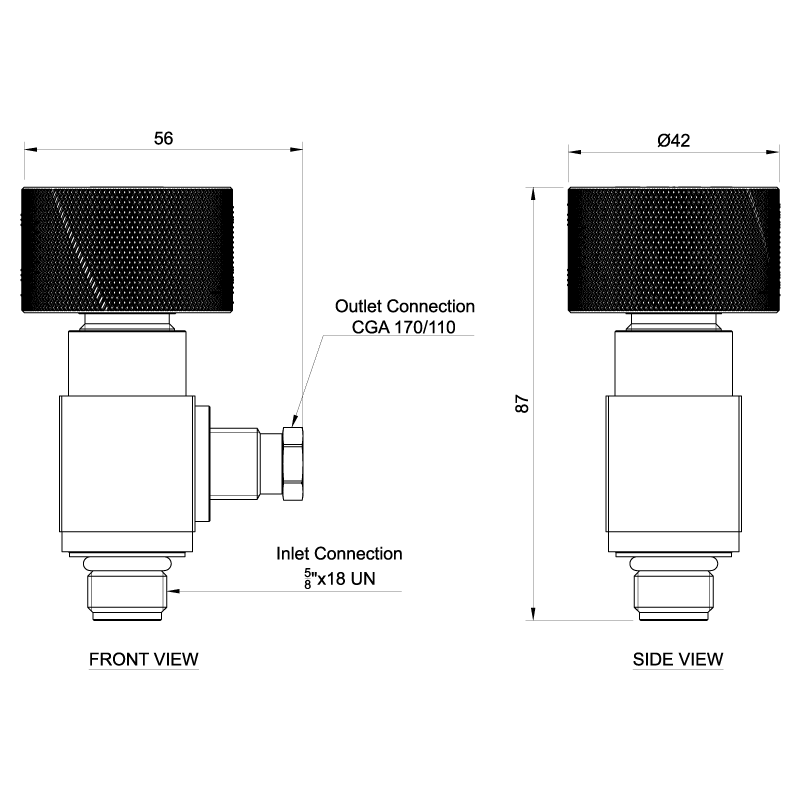

Model 803 LB Valve 5/8" x 18 UN - CGA 170/110
The lecture bottle control valve is a valve used for lecture bottle cylinders. It utilizes an On/OFF mechanism and UN threads which are machined with utmost precision.
Materials of Construction
| Part | Material |
|---|---|
| Body | Brass NP |
| Seat | PCTFE |
| Spring | Stainless Steel 316 |
| Diaphragm | Stainless Steel 316 |
| Bonnet | Brass NP |
| Lower Stem | Stainless Steel 316L |
| Upper Stem | Stainless Steel 416 Zinc plated |
| Knob | Aluminum Black Anodized |
Model Details
| Model | Maximum Inlet Pressure | Inlet Connection | Outlet Connection | Weight Kg |
|---|---|---|---|---|
| 803 | 3000 psi or 200 Bar | 5/8" x 18 UN | CGA 170/110 | 0.356Kg |
Warranty:All valves are warranted for 12 months.
| Model | 803 |
|---|---|
| Maximum Inlet Pressure | 3000 psi or 200 Bar |
| Inlet Connection | 5/8" x 18 UN |
| Outlet Connection | CGA 170/110 |
| Weight Kg | 0.356 Kg |

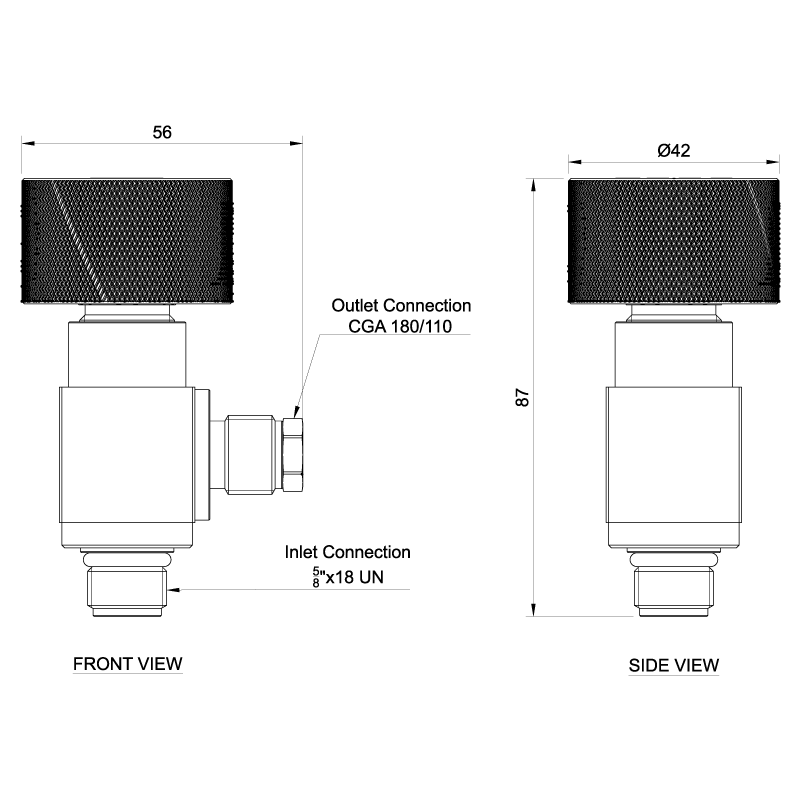

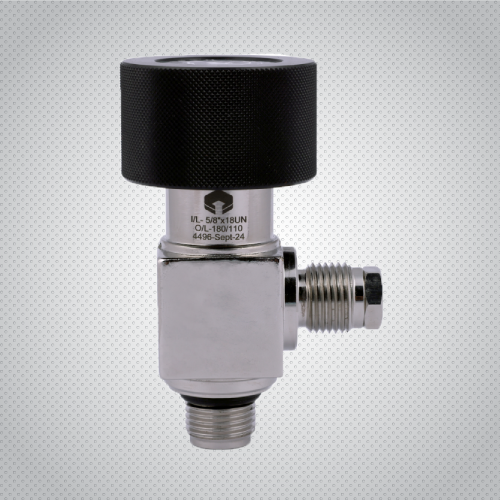

Model 804 LB Valve 5/8"x 18 UN- CGA 180/110
The lecture bottle control valve is a valve used for lecture bottle cylinders. It utilizes an On/OFF mechanism and UN threads which are machined with utmost precision.
Materials of Construction
| Part | Material |
|---|---|
| Body | Brass NP |
| Seat | PCTFE |
| Spring | Stainless Steel 316 |
| Diaphragm | Stainless Steel 316 |
| Bonnet | Brass NP |
| Lower Stem | Stainless Steel 316L |
| Upper Stem | Stainless Steel 416 Zinc plated |
| Knob | Aluminum Black Anodized |
Model Details
| Model | Maximum Inlet Pressure | Inlet Connection | Outlet Connection | Weight Kg |
|---|---|---|---|---|
| 804 | 3000 psi or 200 Bar | 5/8" x 18 UN | CGA 180/110 | 0.360 Kg |
Warranty:All valves are warranted for 12 months.
| Model | 804 |
|---|---|
| Maximum Inlet Pressure | 3000 psi or 200 Bar |
| Inlet Connection | 5/8" x 18 UN |
| Outlet Connection | CGA 180/110 |
| Weight Kg | 0.360 Kg |
