Flow Control Valve 200 Series

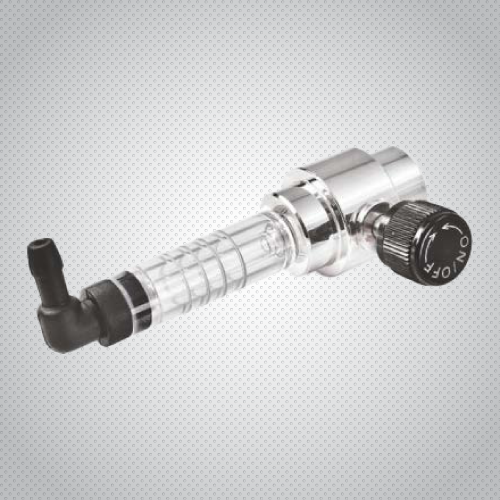

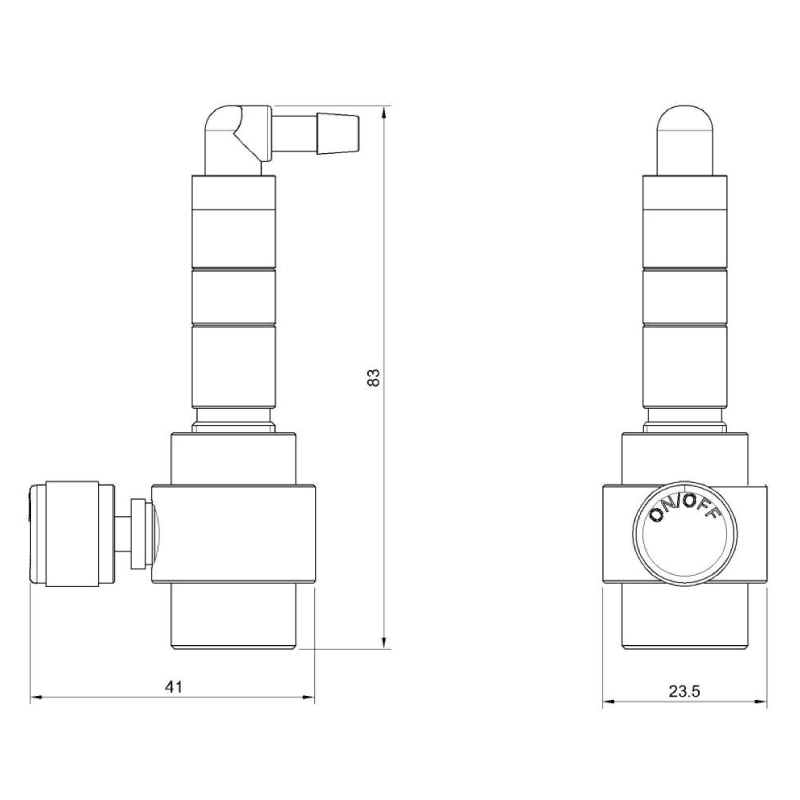

Model 201 Flow Control Valve-Aerosol Brass NP
The flow control valve aerosol is used for non-reactive calibration gases and industrial safety monitors.
Materials of Construction
| Part | Material |
|---|---|
| Body | Brass Nickel Plated |
| Spindle & Nut | Brass |
| Knob | Aluminum black anodized |
| Flow Meter | Acrylic |
| Seats and Seal | Buna-N |
Model Details
| Model | Working Pressure | For Reactive Gases and/or Non-reactive Gases | Inlet Connection | Outlet Connection | Weight Kg |
|---|---|---|---|---|---|
| 201 | 0 to 300 psig/ 20 bar | Brass NP for non-reactive gases | Aerosol | 3/16" Barb Hose | 0.089 Kg |
Warranty:All valves are warranted for 12 months.
| Model | 201 |
|---|---|
| Working Pressure | 0 to 300 psig/ 20 bar |
| For Reactive Gases and/or Non-reactive Gases | Brass NP for non-reactive gases |
| Inlet Connection | Aerosol |
| Outlet Connection | 3/16" Barb Hose |
| Weight Kg | 0.089 Kg |

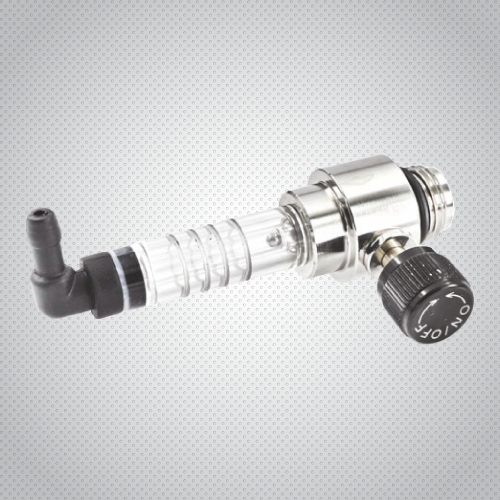

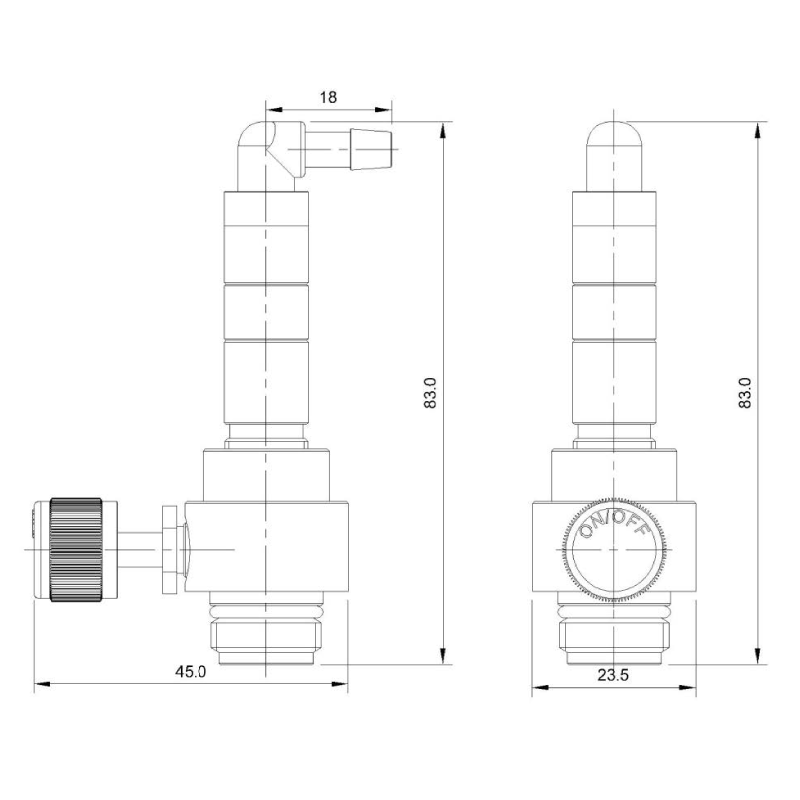

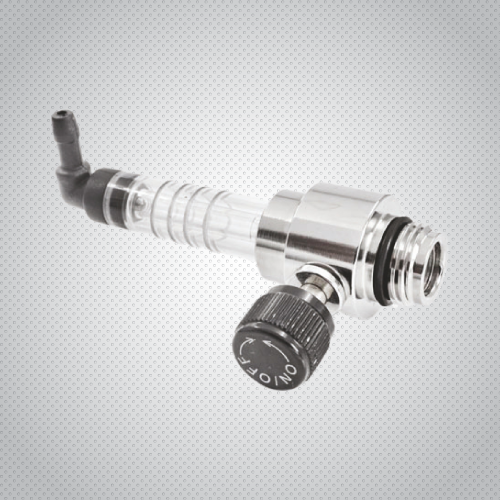

Model 202 Flow Control Valve-C10 Brass NP
The flow control valve C10 is used for non-reactive calibration gases and industrial safety monitors.
Materials of Construction
| Part | Material |
|---|---|
| Body | Brass Nickel Plated |
| Spindle & Nut | Brass |
| Knob | Aluminum Black Anodized |
| Flow Meter | Acrylic |
| Seats and Seal | Buna-N, Viton |
Model Details
| Model | Working Pressure | For Reactive Gases and/or Non-reactive Gases | Inlet Connection | Outlet Connection | Weight Kg |
|---|---|---|---|---|---|
| 202 | 0 to 1200 psig/ 83 bar | Brass NP for non- reactive gases | 5/8" x 18UN - C10 | 3/16" Barb Hose | 0.086 Kg |
Warranty:All valves are warranted for 12 months.
| Model | 202 |
|---|---|
| Working Pressure | 0 to 1200 psig/ 83 bar |
| For Reactive Gases and/or Non-reactive Gases | Brass NP for non- reactive gases |
| Inlet Connection | 5/8" x 18UN - C10 |
| Outlet Connection | 3/16" Barb Hose |
| Weight Kg | 0.086 Kg |

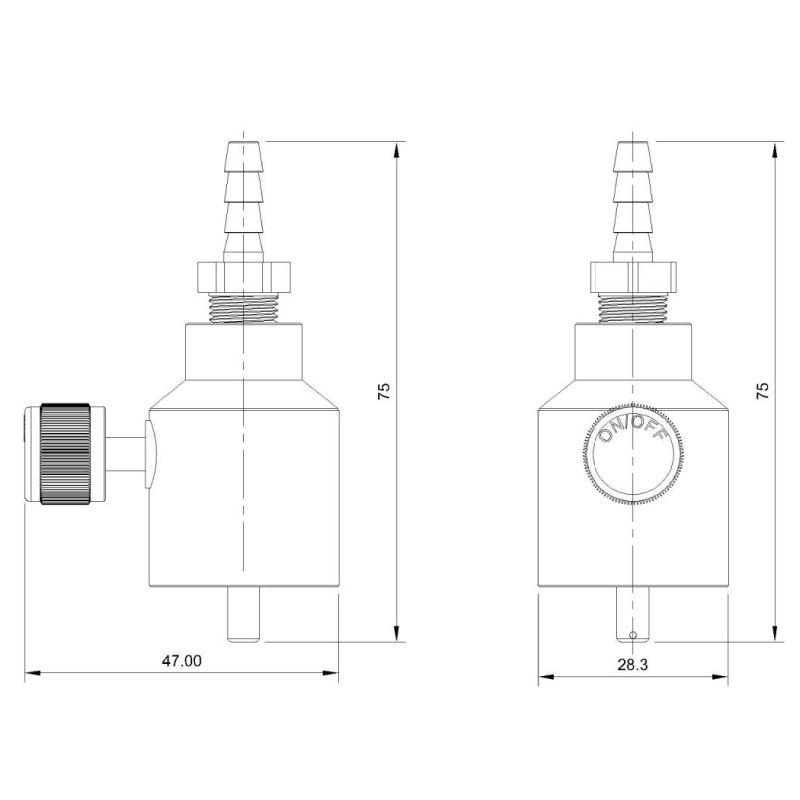

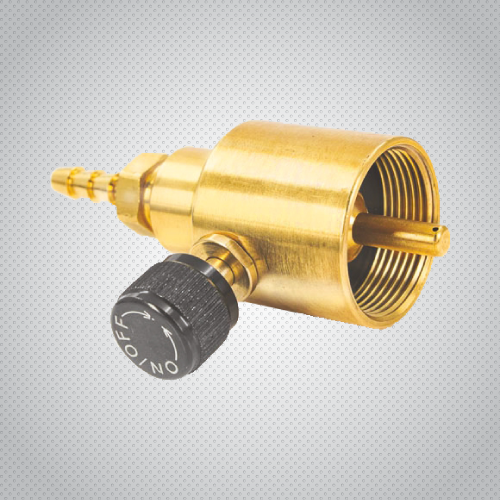

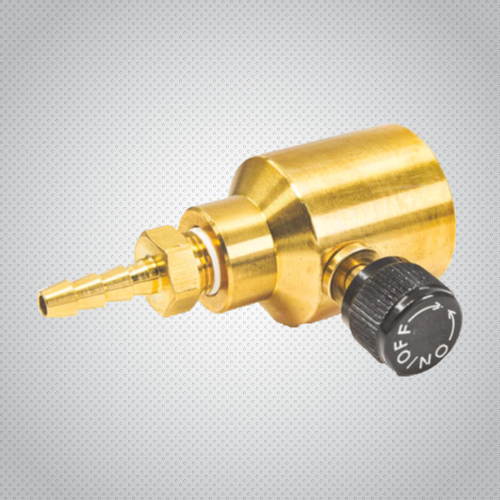

Model 203 Flow Control Valve - CGA-600 - 3/16" Barb Hose Brass
The flow control valve CGA-600 inlet is used for non-reactive calibration gases and industrial safety monitors.
Materials of Construction
| Part | Material |
|---|---|
| Body | Brass |
| Spindle & Nut | Brass |
| Knob | Aluminum Black Anodized |
| Barb Hose | Brass |
| Seats and Seal | Buna-N |
Model Details
| Model | Working Pressure | For Reactive Gases and/or Non-reactive Gases | Inlet Connection | Outlet Connection | Weight Kg |
|---|---|---|---|---|---|
| 203 | 0 to 600 psig/ 40 bar | Brass for non- reactive gases | CGA-600 | 3/16" Barb Hose | 0.141 Kg |
Warranty:All valves are warranted for 12 months.
| Model | 203 |
|---|---|
| Working Pressure | 0 to 600 psig/ 40 bar |
| For Reactive Gases and/or Non-reactive Gases | Brass for non- reactive gases |
| Inlet Connection | CGA-600 |
| Outlet Connection | 3/16" Barb Hose |
| Weight Kg | 0.141 Kg |

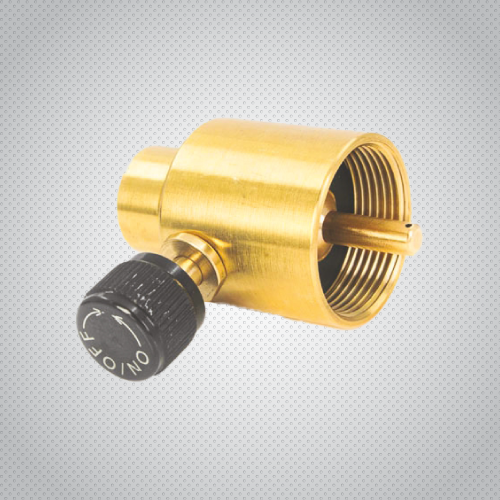

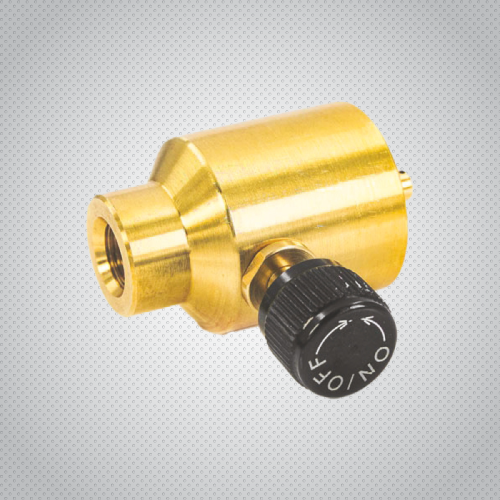

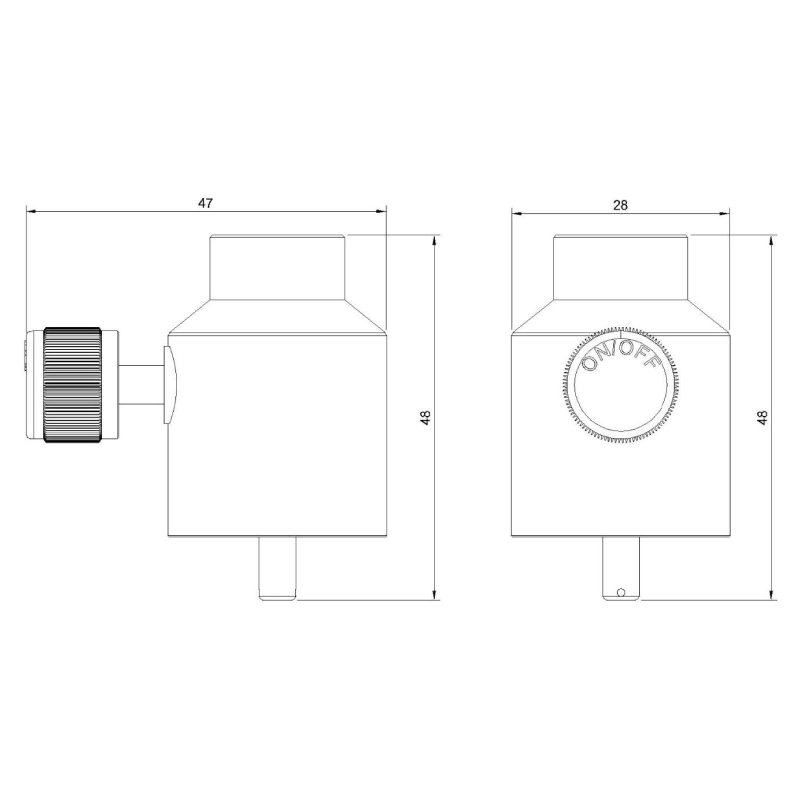

Model 204 Flow Control Valve - CGA-600 - 1/8" FNPT Brass
The flow control valve CGA-600 inlet is used for non-reactive calibration gases and industrial safety monitors.
Materials of Construction
| Part | Material |
|---|---|
| Body | Brass |
| Spindle & Nut | Brass |
| Knob | Aluminum black anodized |
| Seats and Seals | Buna-N |
Model Details
| Model | Working Pressure | For Reactive Gases and/or Non-reactive Gases | Inlet Connection | Outlet Connection | Weight Kg |
|---|---|---|---|---|---|
| 204 | 0 to 600 psig/ 40 bar | Brass for non-reactive gases | CGA-600 | 1/8" FNPT | 0.128 Kg |
Warranty:All valves are warranted for 12 months.
| Model | 204 |
|---|---|
| Working Pressure | 0 to 600 psig/ 40 bar |
| For Reactive Gases and/or Non-reactive Gases | Brass for nonreactive gases |
| Inlet Connection | CGA-600 |
| Outlet Connection | 1/8" FNPT |
| Weight Kg | 0.128 Kg |

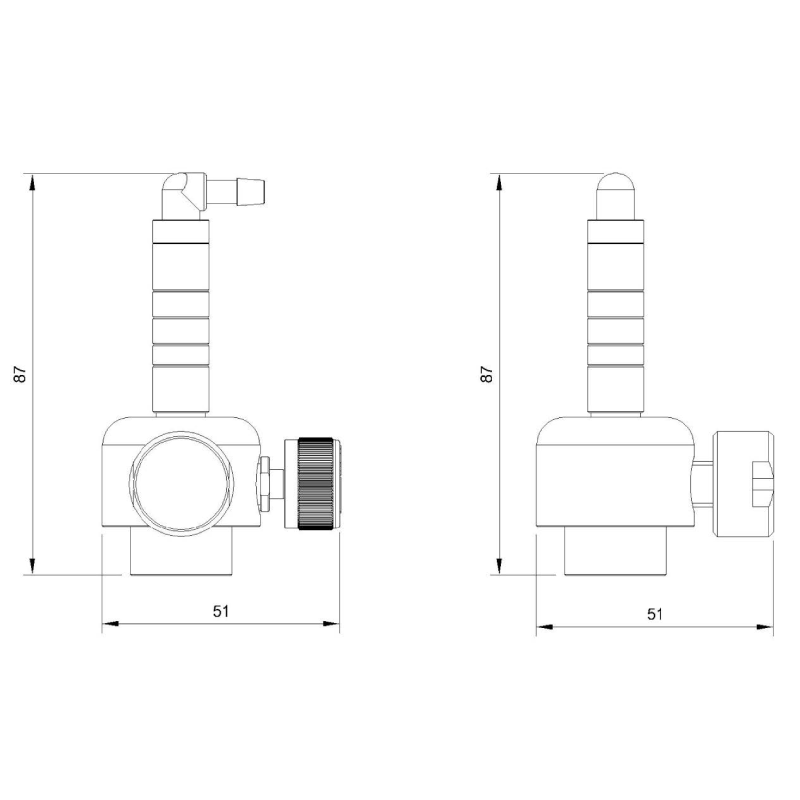

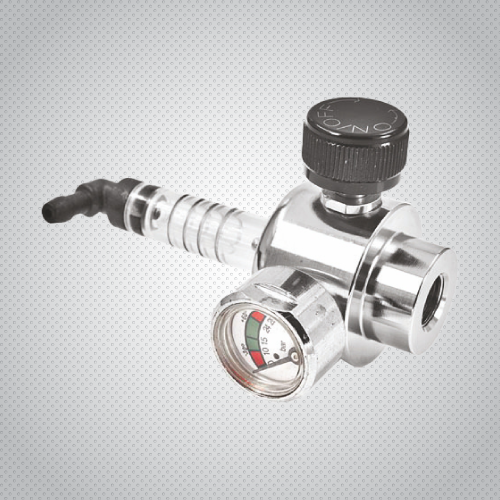

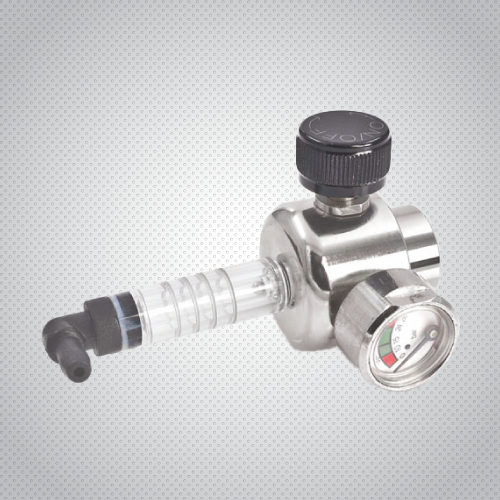

Model 205 Flow Control Valve-S Flow-F1 Brass NP
The flow control valve S Flow- F1 is used for non-reactive calibration gases and industrial safety monitors
Materials of Construction
| Part | Material |
|---|---|
| Body | Brass Nickel Plated |
| Spindle & Nut | Brass |
| Knob | Aluminum Black Anodized |
| Flow Meter | Acrylic |
| Seats and Seal | Buna-N |
Model Details
| Model | Working Pressure | For Reactive Gases and/or Non-reactive Gases | Inlet Connection | Outlet Connection | Weight Kg |
|---|---|---|---|---|---|
| 205 | 0 to 300 psig/ 20 bar | Brass NP for non-reactive gases | Aerosol | 3/16" Barb Hose | 0.233 Kg |
Warranty:All valves are warranted for 12 months.
| Model | 205 |
|---|---|
| Working Pressure | 0 to 300 psig/ 20 bar |
| For Reactive Gases and/or Non-reactive Gases | Brass NP for non-reactive gases |
| Inlet Connection | Aerosol |
| Outlet Connection | 3/16" Barb Hose |
| Weight Kg | 0.233 Kg |

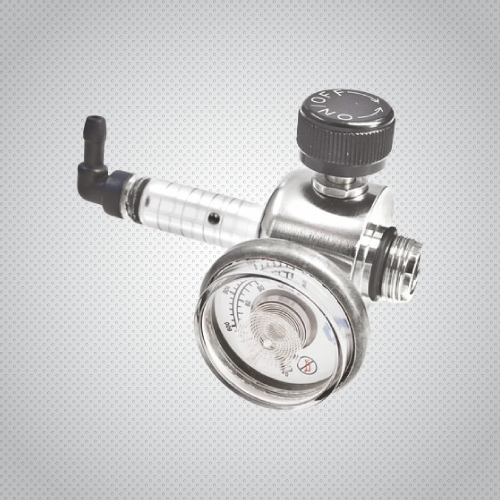

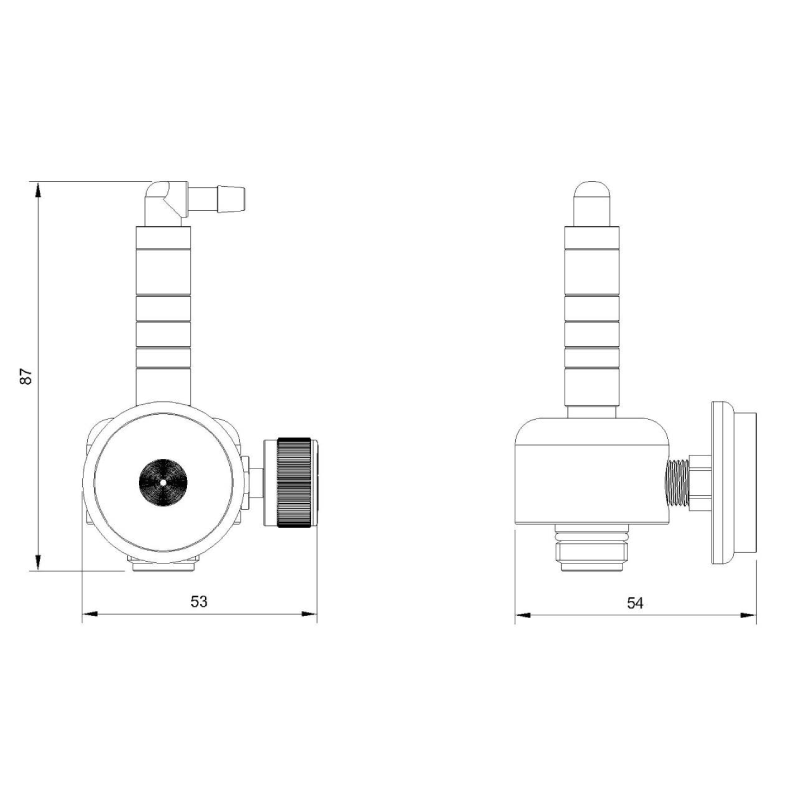

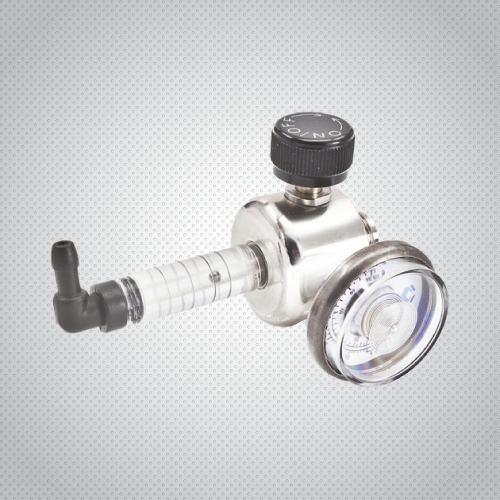

Model 206 Flow Control Valve-S Flow-F2 Brass NP
The flow control valve S Flow- F2 is used for non-reactive calibration gases and industrial safety monitors.
Materials of Construction
| Part | Material |
|---|---|
| Body | Brass Nickel Plated |
| Spindle & Nut | Brass |
| Knob | Aluminum Black Anodized |
| Flow Meter | Acrylic |
| Seats and Seal | Buna-N, Viton |
Model Details
| Model | Working Pressure | For Reactive Gases and/or Non-reactive Gases | Inlet Connection | Outlet Connection | Weight Kg |
|---|---|---|---|---|---|
| 206 | 0 to 1200 psig/ 83 bar | Brass for non-reactive gases | 5/8" x 18UN C10 | 3/16" Barb Hose | 0.209 Kg |
Warranty:All valves are warranted for 12 months.
| Model | 206 |
|---|---|
| Working Pressure | 0 to 1200 psig/ 83 bar |
| For Reactive Gases and/or Non-reactive Gases | Brass for nonreactive gases |
| Inlet Connection | 5/8" X 18UN C10 |
| Outlet Connection | 3/16" Barb Hose |
| Weight Kg | 0.209 Kg |
