Septum Regulator 400 Series

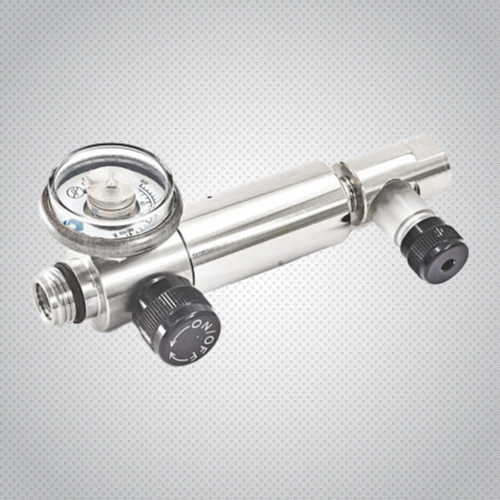

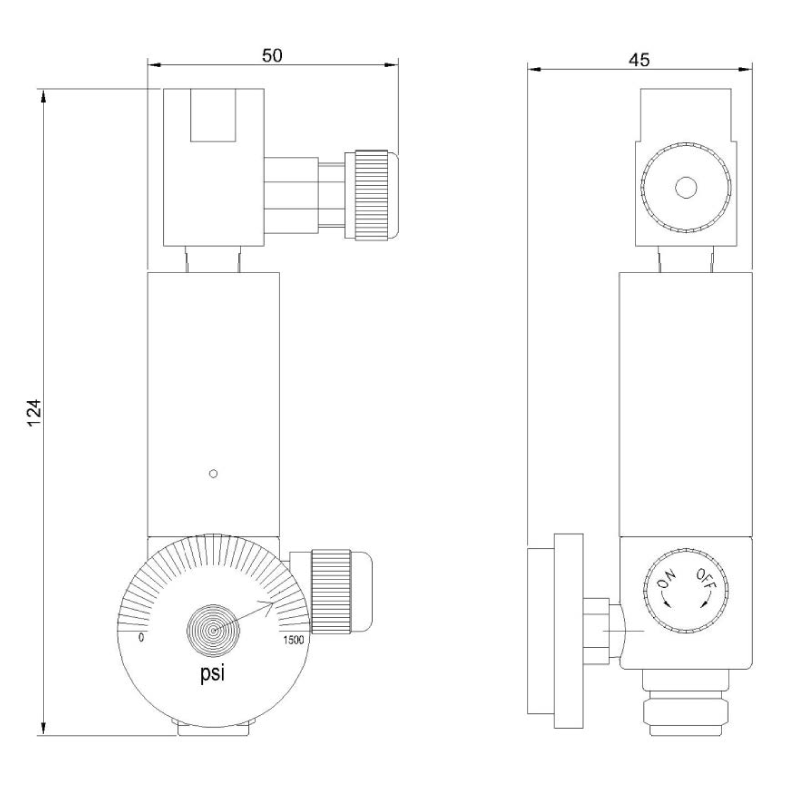

Model 401 Septum Regulator-C10-Brass NP
The Septum Regulator is a special regulator intended for laboratory gas applications in which a syringe is used for extracting the gas sample.
Materials of Construction
| Part | Material |
|---|---|
| Body | Stainless Steel |
| CAP | Brass Nickel Plated |
| Piston | Brass |
| Button | Buna-N |
| Seats and Seals | Viton, Buna-N, Teflon |
Model Details
| Model | Maximum Inlet Pressure | For Reactive Gases and/or Non-reactive Gases | Inlet Connection | Outlet Connection | Outlet Pressure | Gauge | Weight Kg |
|---|---|---|---|---|---|---|---|
| 401 | 0 to 1200 psig / 83 bar | Brass NP for non-reactive gases | 5/8" x 18UN | Septum | 60 psig - 4.1bar | Brass 0 to 1500 psig 103 bar | 0.380 Kg |
Warranty:All regulators are warranted for 12 months.
| Model | 401 |
|---|---|
| Working Pressure | 0 to 1200 psig / 83 bar |
| For Reactive Gases and/or Non-reactive Gases | Brass NP for non-reactive gases |
| Inlet Connection | 5/8" x 18UN |
| Outlet Connection | Septum |
| Outlet Pressure | 60 psig - 4.1bar |
| Gauge | Brass 0 to 1500 psig 103 bar |
| Weight Kg | 0.380 Kg |

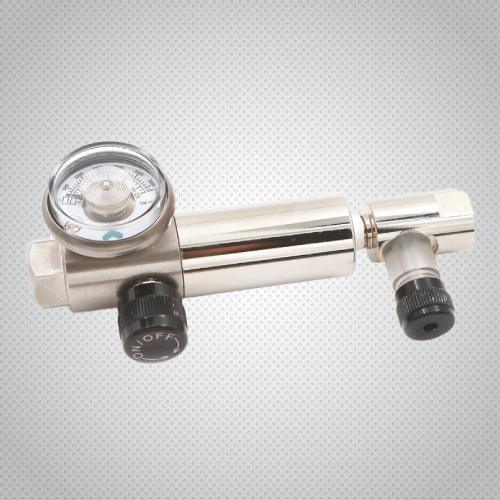

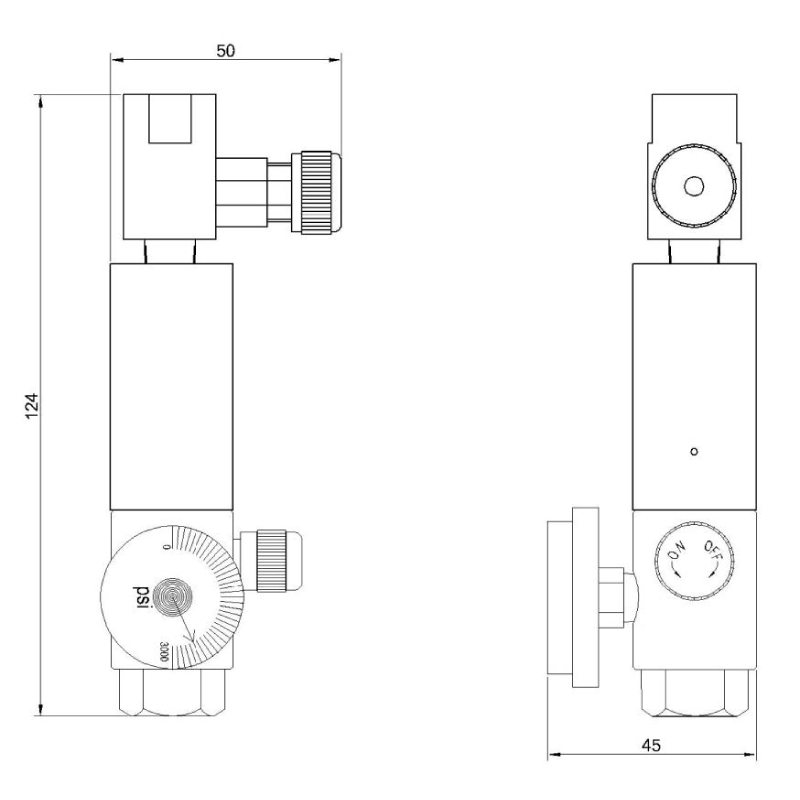

Model 402 HP Septum Regulator Brass NP
The HP Septum Regulator is a special regulator intended for laboratory gas applications in which a syringe is used for extracting the gas sample.
Materials of Construction
| Part | Material |
|---|---|
| Body | Stainless Steel |
| CAP | Brass Nickel Plated |
| Piston | Brass |
| Button | Buna-N |
| Seats and Seals | Viton, Buna-N, Teflon |
Model Details
| Model | Maximum Inlet Pressure | For Reactive Gases and/or Non-reactive Gases | Inlet Connection | Outlet Connection | Outlet Pressure | Gauge | Weight Kg |
|---|---|---|---|---|---|---|---|
| 402 | 0 to 3000 psig / 200 bar | Brass NP for non- reactive gases | ¼" NPTF | Septum | 60 psig - 4.1 bar | SS 0 to 3180 psig 220 bar | 0.404 Kg |
Warranty:All regulators are warranted for 12 months.
| Model | 402 |
|---|---|
| Working Pressure | 0 to 3000 psig / 200 bar |
| For Reactive Gases and/or Non-reactive Gases | Brass NP for non- reactive gases |
| Inlet Connection | ¼" NPTF |
| Outlet Connection | Septum |
| Outlet Pressure | 60 psig - 4.1 bar |
| Gauge | SS 0 to 3180 psig / 220 bar |
| Weight Kg | 0.404 Kg |

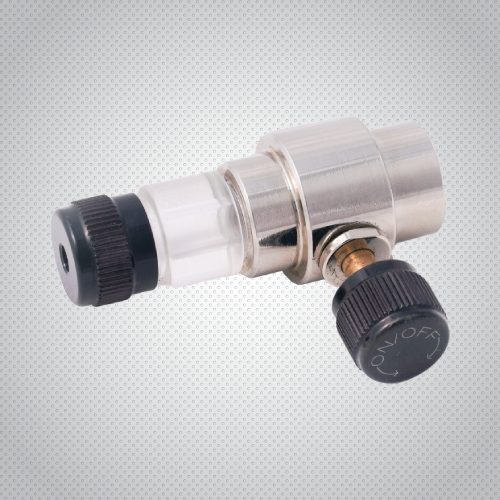

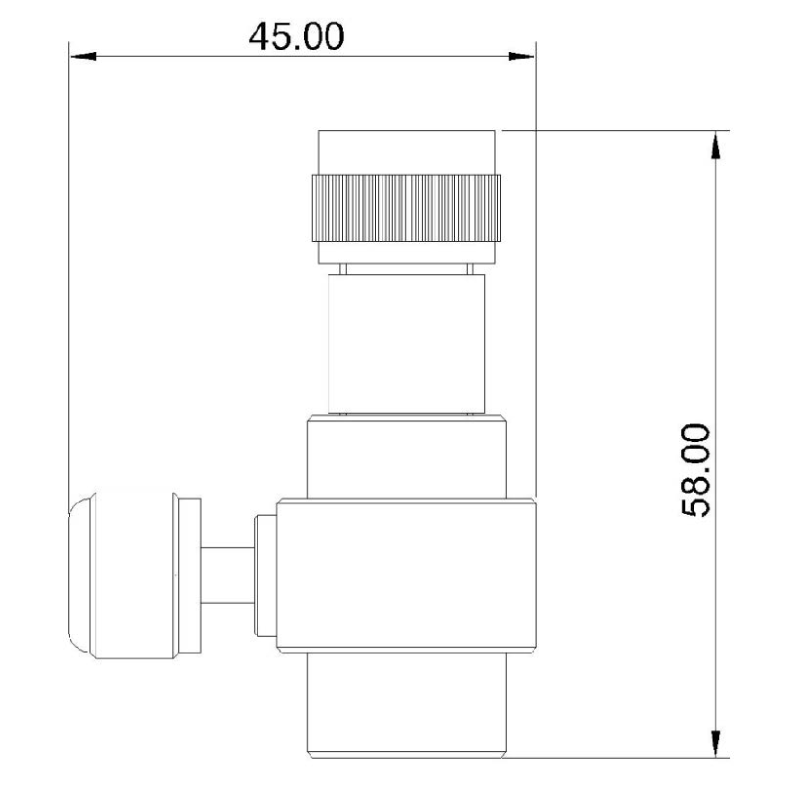

Model 403 Septum Valve With Aerosol Brass NP
The Septum Valve With Aerosol is a special regulator intended for low pressure laboratory gas applications in which a syringe is used for extracting the gas sample.
Materials of Construction
| Part | Material |
|---|---|
| Body | Brass N.P. |
| Septum | Buna-N |
| Seats and Seals | Viton, Buna-N |
Model Details
| Model | Maximum Inlet Pressure | For Reactive Gases and/or Non-reactive Gases | Inlet Connection | Outlet Connection | Weight Kg |
|---|---|---|---|---|---|
| 403 | 0 to 300 psig / 20 bar | Brass NP - For Non-Reactive Gases | Aerosol | Septum | 0.089 Kg |
Warranty:All septum valve are warranted for 12 months.
| Model | 403 |
|---|---|
| Working Pressure | 0 to 300 psig / 20 bar |
| For Reactive Gases and/or Non-reactive Gases | Brass NP- For Non-Reactive Gases |
| Inlet Connection | Aerosol |
| Outlet Connection | Septum |
| Weight Kg | 0.089 Kg |
