Fixed Flow Regulators 900 Series

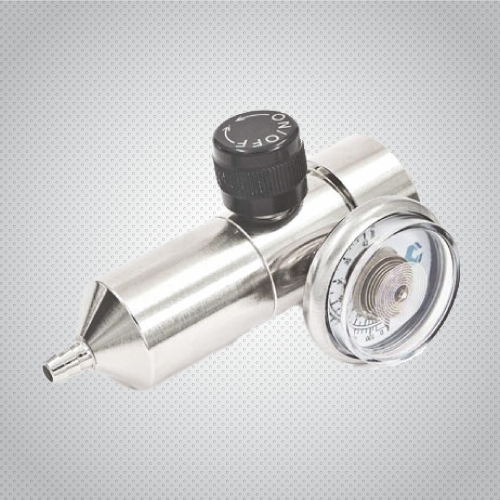

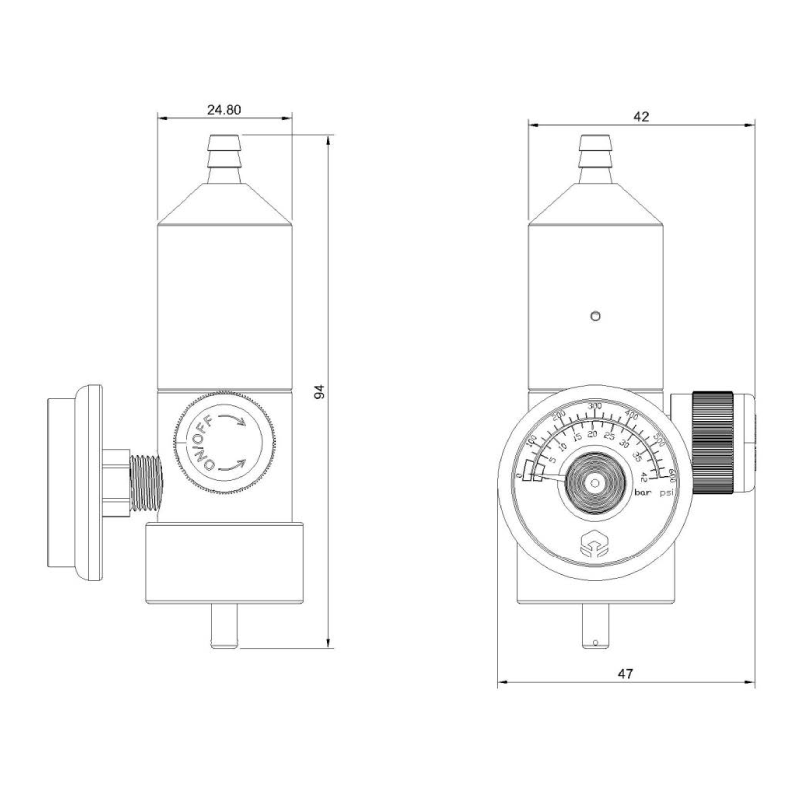

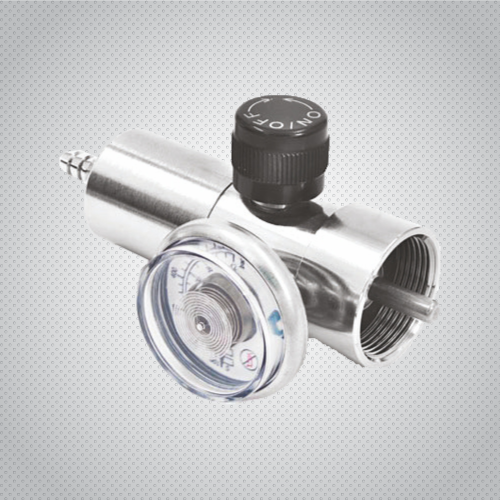

Model 901 CGA600 Fixed Flow Regulator Brass NP
The CGA600 Fixed Flow Regulator uses a single stage design which allows the end user to obtain a preset constant flow rate. They are used with 17L and 34L cylinders. Used for calibration gases and handheld gas detectors.
Materials of Construction
| Part | Material |
|---|---|
| Body | Brass Nickel Plated |
| Cap | Brass Nickel Plated |
| Piston | Brass |
| Seats and Seals | Teflon, Viton & Buna-N |
| Washer | Buna-N |
| Flow | Fixed as per customers requirement - 0.1 to 8.0 L/Mn |
Model Details
| Model | Maximum Inlet Pressure | For Reactive Gases and/or Non-reactive Gases | Inlet Connection | Outlet Connection | Outlet Pressure | Gauge | Weight Kg |
|---|---|---|---|---|---|---|---|
| 901 | 0 to 600 psig / 40 bar | Brass NP for Non-reactive Gases | 1" x 20 UNF CGA600 | 3/16" Barb 4.8mm | 30 psig - 2.1 bar | Brass 0 to 600 psig 40 bar | 0.330 Kg |
Warranty:All regulators are warranted for 12 months.
| Model | 901 |
|---|---|
| Maximum Inlet Pressure | 0 to 600 psig / 40 bar |
| For Reactive Gases and/or Non-reactive Gases | Brass NP for Non-reactive Gases |
| Inlet Connection | 1" x 20 UNF CGA600 |
| Outlet Connection | 3/16" Barb 4.8mm |
| Outlet Pressure | 30 psig - 2.1 bar |
| Gauge | Brass 0 to 600 psig 40 bar |
| Weight Kg | 0.330 Kg |

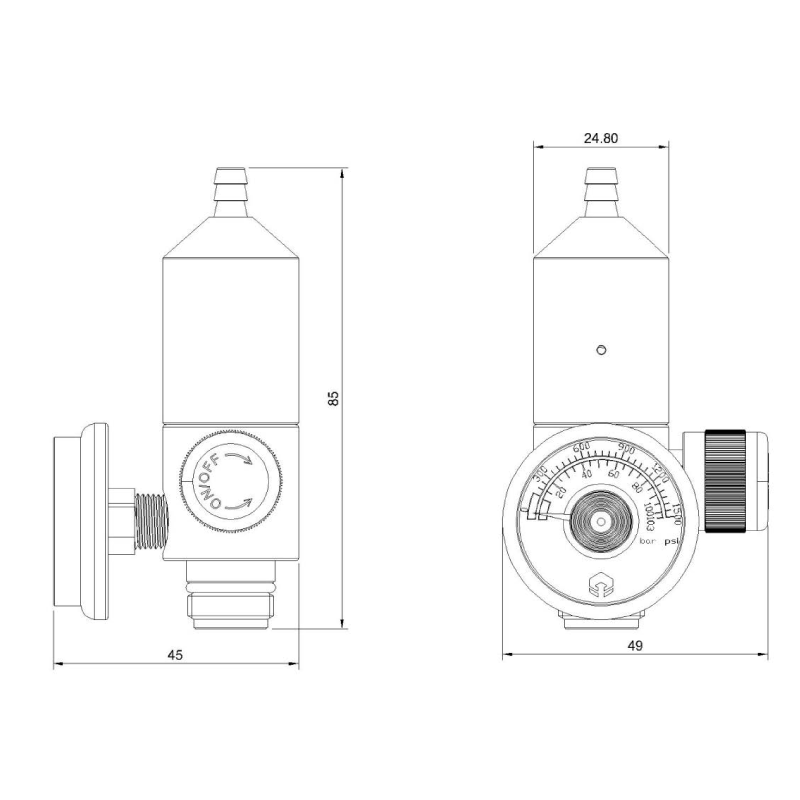

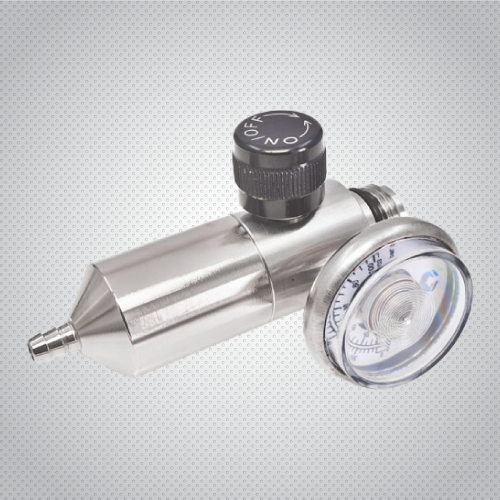

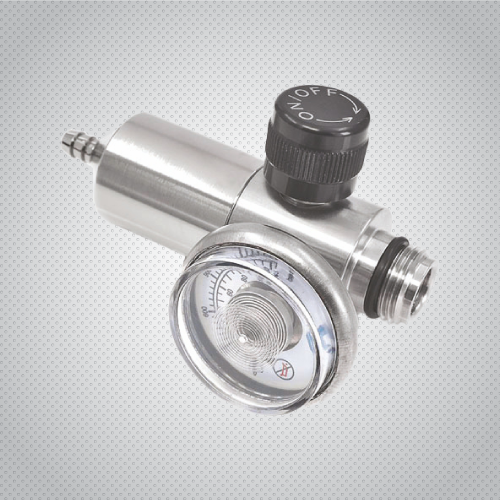

Model 902 Fixed Flow Regulator-C10-Brass NP
The Fixed Flow Regulator-C10 uses a single stage design which allows the end user to obtain a preset constant flow rate. They are used with 17L and 34L cylinders. Used for calibration gases and handheld gas detectors.
Materials of Construction
| Part | Material |
|---|---|
| Body | Stainless Steel |
| Cap | Brass Nickel Plated |
| Piston | Brass |
| Seats and Seals | Teflon, Viton |
| Flow | Fixed as per customers requirement - 0.1 to 8.0 L/Mn |
Model Details
| Model | Maximum Inlet Pressure | For Reactive Gases and/or Non-reactive Gases | Inlet Connection | Outlet Connection | Outlet Pressure | Gauge | Weight Kg |
|---|---|---|---|---|---|---|---|
| 902 | 0 to 1200 psig / 83 bar | Brass NP for Non-reactive Gases | 5/8" x 18UN C10 | 3/16" Barb 4.8mm | 60 psig - 4.1 bar | Brass 0 to 1500 psig 103 bar | 0.300 Kg |
Warranty:All regulators are warranted for 12 months.
| Model | 902 |
|---|---|
| Maximum Inlet Pressure | 0 to 1200 psig / 83 bar |
| For Reactive Gases and/or Non-reactive Gases | Brass NP for Non-reactive Gases |
| Inlet Connection | 5/8" x 18UN C10 |
| Outlet Connection | 3/16" Barb 4.8mm |
| Outlet Pressure | 60 psig - 4.1 bar |
| Gauge | Brass 0 to 1200 psig 103 bar |
| Weight Kg | 0.300 Kg |

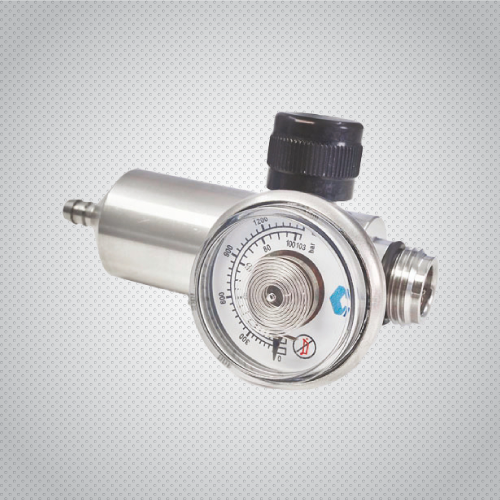

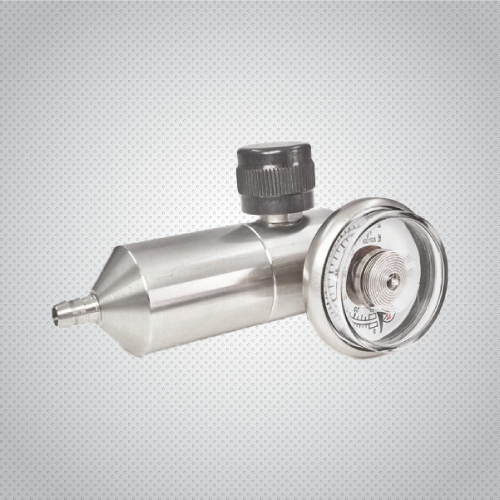

Model 903 Fixed Flow Regulator-C10-Stainless Steel
The Fixed Flow Regulator-C10 uses a single stage design which allows the end user to obtain a preset constant flow rate. They are used with 17L and 34L cylinders. Used for calibration gases and handheld gas detectors.
Materials of Construction
| Part | Material |
|---|---|
| Body | Stainless Steel |
| CAP | Stainless Steel |
| Piston | Stainless Steel |
| Seats and Seals | Teflon, Viton |
| Flow | Fixed as per customers requirement - 0.1 to 8.0 L/Mn |
Model Details
| Model | Maximum Inlet Pressure | For Reactive Gases and/or Non-reactive Gases | Inlet Connection | Outlet Connection | Outlet Pressure | Gauge | Weight Kg |
|---|---|---|---|---|---|---|---|
| 903 | 0 to 1200 psig / 83 bar | Stainless Steel for Reactive Gases | 5/8" x 18UN C10 | 3/16" Barb 4.8mm | 60 psig - 4.1 bar | Stainless Steel 0 to 1500 psig 103 bar | 0.280 Kg |
Warranty:All regulators are warranted for 12 months.
| Model | 903 |
|---|---|
| Maximum Inlet Pressure | 0 to 1200 psig / 83 bar |
| For Reactive Gases and/or Non-reactive Gases | Stainless Steel for Reactive Gases |
| Inlet Connection | 5/8" x 18UN ClO |
| Outlet Connection | 3/16" Barb 4.8mm |
| Outlet Pressure | 60 psig - 4.1 bar |
| Gauge | Stainless Steel 0 to 1500 psig 103 bar |
| Weight Kg | 0.280 Kg |

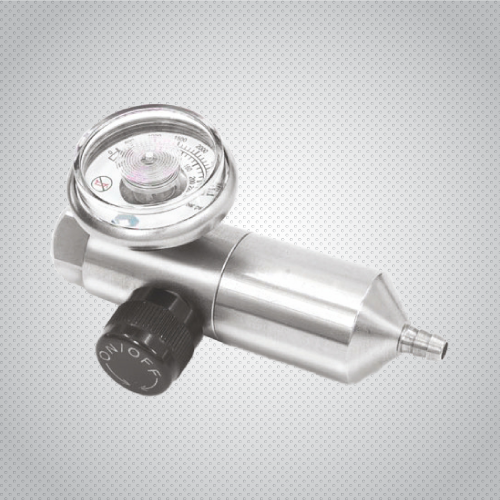

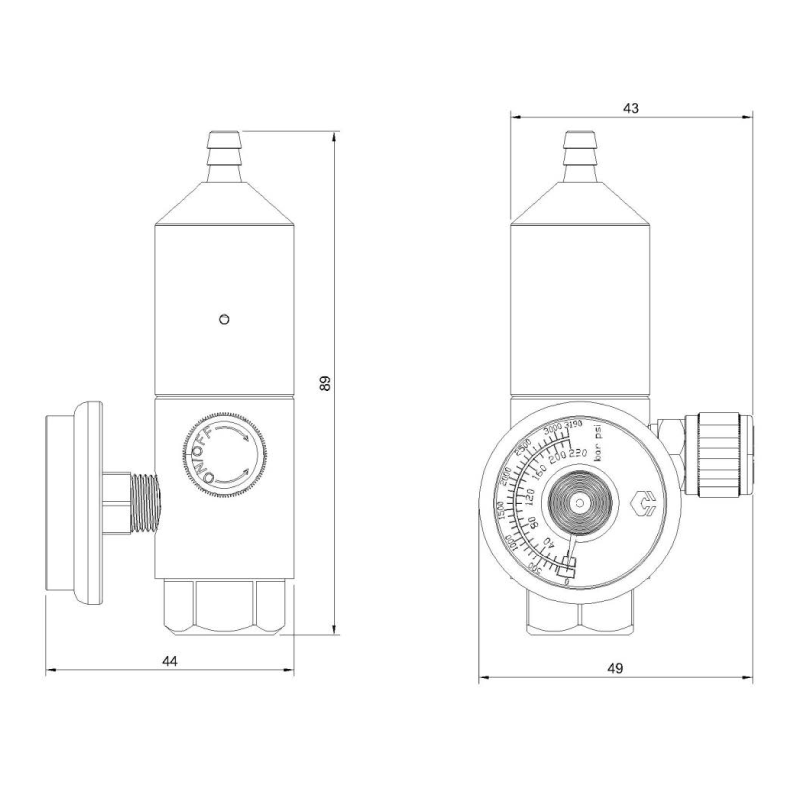

Model 904 HP Fixed Flow Regulator- Brass NP
The High Pressure Fixed Flow Regulator uses a single stage design which allows the end user to obtain a preset constant flow rate. They can be connected with any CGA/DIN/BS cylinder connections. Used for calibration gases and handheld gas.
Materials of Construction
| Part | Material |
|---|---|
| Body | Stainless Steel |
| Cap | Brass Nickel Plated |
| Piston | Brass |
| Seats and Seals | Teflon, Viton |
| Flow | Fixed as per customers requirement - 0.1 to 8.0 L/Mn |
Model Details
| Model | Maximum Inlet Pressure | For Reactive Gases and/or Non-reactive Gases | Inlet Connection | Outlet Connection | Outlet Pressure | Gauge | Weight Kg |
|---|---|---|---|---|---|---|---|
| 904 | 0 to 3000 psig / 207 bar | Brass NP for Non-reactive Gases | ¼"NPT Female | 3/16" Barb 4.8mm | 60 psig - 4.1 bar | Stainless Steel 0 to 3180 psig 220 bar | 0.350 Kg |
Warranty:All regulators are warranted for 12 months.
| Model | 904 |
|---|---|
| Maximum Inlet Pressure | 0 to 3000 psig / 207 bar |
| For Reactive Gases and/or Non-reactive Gases | Brass NP for Non-reactive Gases |
| Inlet Connection | ¼"NPT Female |
| Outlet Connection | 3/16" Barb 4.8mm |
| Outlet Pressure | 60 psig - 4.1 bar |
| Gauge | Stainless Steel 0 to 3180 psig 220 bar |
| Weight Kg | 0.350 Kg |

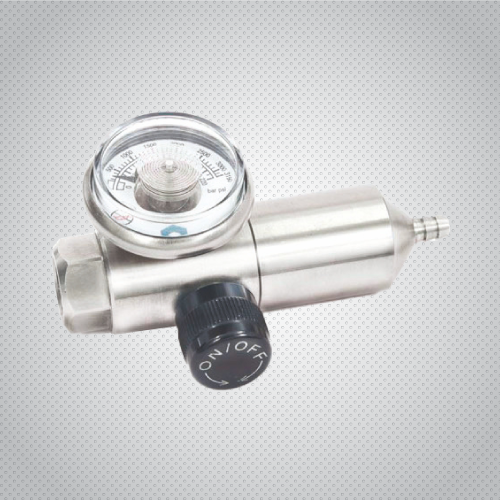

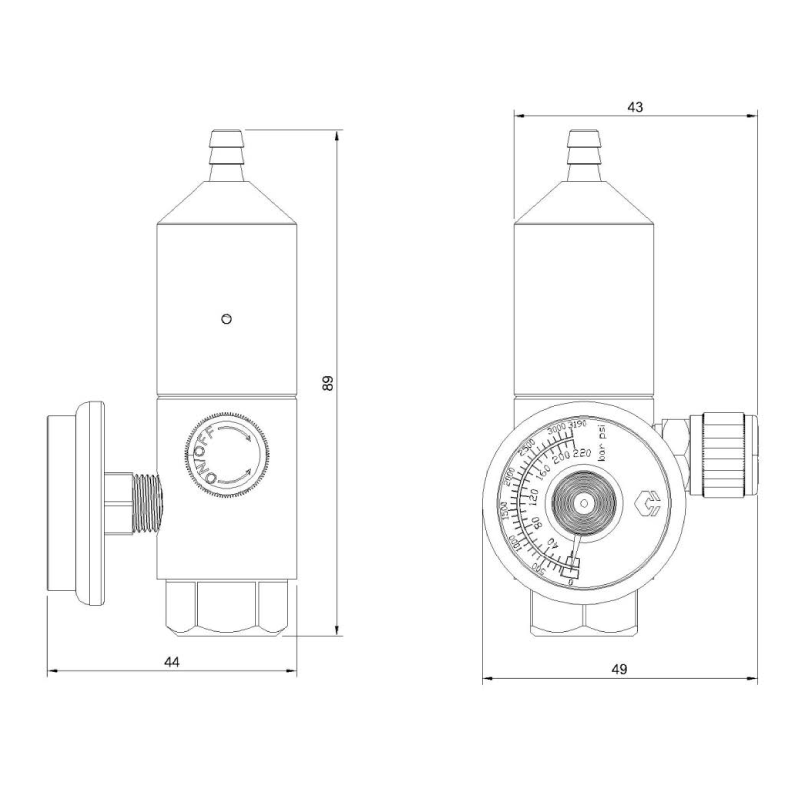

Model 905 HP Fixed Flow Regulators Stainless Steel
The High Pressure Fixed Flow Regulator uses a single stage design which allows the end user to obtain a preset constant flow rate. They can be connected with any CGA/DIN/BS cylinder connections. Used for calibration gases and handheld gas.
Materials of Construction
| Part | Material |
|---|---|
| Body | Stainless Steel |
| Cap | Stainless Steel |
| Piston | Stainless Steel |
| Seats and Seals | Teflon, Viton |
| Flow | Fixed as per customers requirement - 0.1 to 8.0 L/Mn |
Model Details
| Model | Maximum Inlet Pressure | For Reactive Gases and/or Non-reactive Gases | Inlet Connection | Outlet Connection | Outlet Pressure | Gauge | Weight Kg |
|---|---|---|---|---|---|---|---|
| 905 | 0 to 3000 psig / 207 bar | Stainless Steel for reactive gases | ¼"NPT Female | 3/16" Barb 4.8mm | 60 psig - 4.1 bar | Stainless Steel 0 to 3180 psig 220 bar | 0.350 Kg |
Warranty:All regulators are warranted for 12 months.
| Model | 905 |
|---|---|
| Maximum Inlet Pressure | 0 to 3000 psig/ 207 bar |
| For Reactive Gases and/or Non-reactive Gases | Stainless Steel for reactive gases |
| Inlet Connection | ¼"NPT Female |
| Outlet Connection | 3/16" Barb 4.8mm |
| Outlet Pressure | 60 psig - 4.1 bar |
| Gauge | Stainless Steel 0 to 3180 psig / 220 bar |
| Weight Kg | 0.350 Kg |

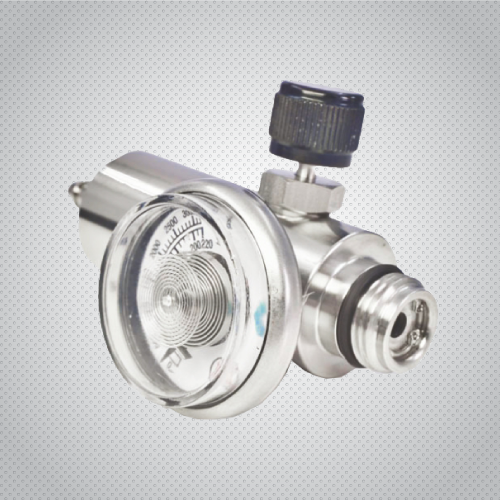

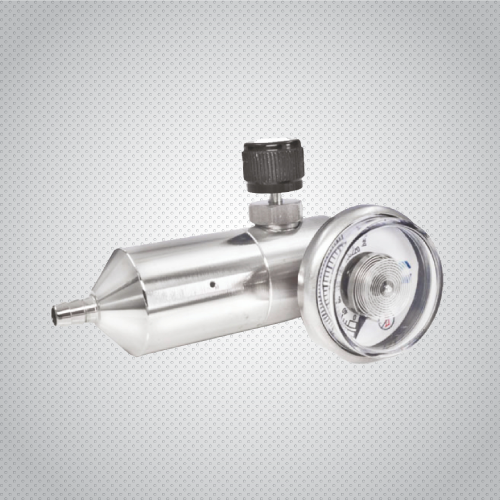

Model 906 Fixed Flow Regulator-C10-Brass NP-120 Bar
The Fixed Flow Regulator-C10 uses a single stage design which allows the end user to obtain a preset constant flow rate. Used for calibration gases and handheld gas detectors.
Materials of Construction
| Part | Material |
|---|---|
| Body | Stainless Steel |
| Cap | Brass Nickel Plated |
| Piston | Brass |
| Seats and Seals | Teflon, Viton |
| Flow | Fixed as per customers requirement - 0.1 to 8.0 L/Mn |
Model Details
| Model | Maximum Inlet Pressure | For Reactive Gases and/or Non-reactive Gases | Inlet Connection | Outlet Connection | Outlet Pressure | Gauge | Weight Kg |
|---|---|---|---|---|---|---|---|
| 906 | 0 to 1740 psig / 120 bar | Brass NP for Non-reactive Gases | 5/8" x 18UN C10 | 3/16" Barb 4.8mm | 60 psig - 4.1 bar | Stainless Steel 0 to 3000 psig 220 bar | 0.300 Kg |
Warranty:All regulators are warranted for 12 months.
| Model | 906 |
|---|---|
| Maximum Inlet Pressure | 0 to 1740 psig / 120 bar |
| For Reactive Gases and/or Non-reactive Gases | Brass NP for Non-reactive Gases |
| Inlet Connection | 5/8" x 18UN C10 |
| Outlet Connection | 3/16" Barb 4.8mm |
| Outlet Pressure | 60 psig - 4.1 bar |
| Gauge | Stainless Steel 0 to 3000 psig 220 bar |
| Weight Kg | 0.300 Kg |

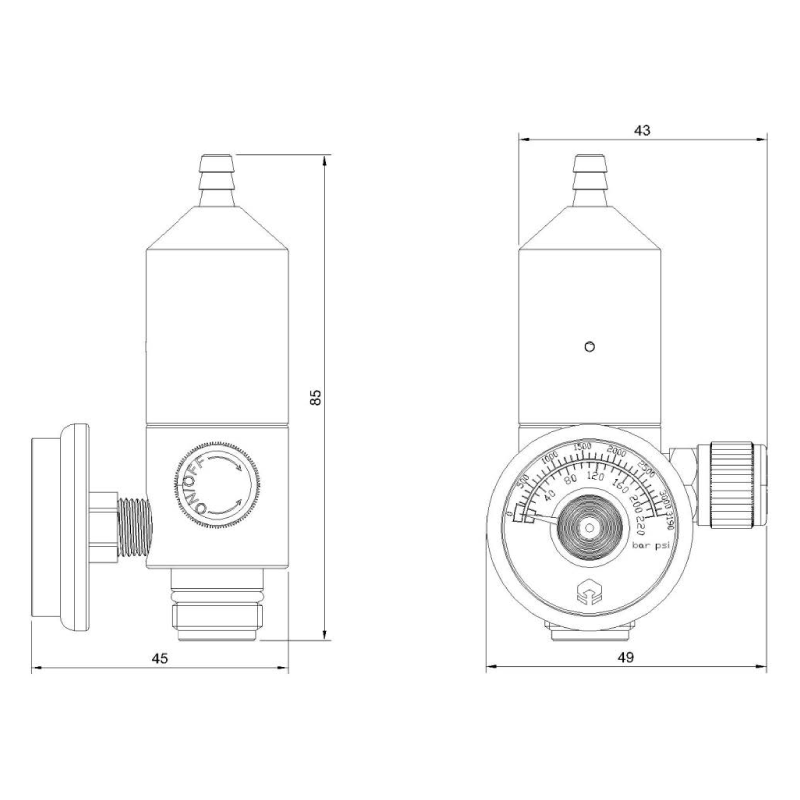

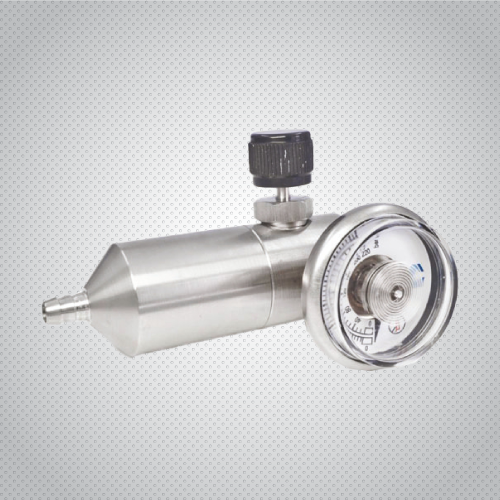

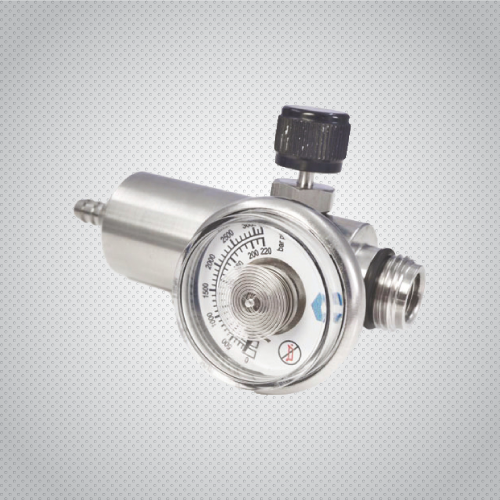

Model 907 Fixed Flow Regulator-C10-Stainless Steel-120 Bar
The Fixed Flow Regulator-C10 uses a single stage design which allows the end user to obtain a preset constant flow rate. Used for calibration gases and handheld gas detectors.
Materials of Construction
| Part | Material |
|---|---|
| Body | Stainless Steel |
| Cap | Stainless Steel |
| Piston | Stainless Steel |
| Seats and Seals | Teflon, Viton |
| Flow | Fixed as per customers requirement - 0.1 to 8.0 L/Mn |
Model Details
| Model | Maximum Inlet Pressure | For Reactive Gases and/or Non-reactive Gases | Inlet Connection | Outlet Connection | Outlet Pressure | Gauge | Weight Kg |
|---|---|---|---|---|---|---|---|
| 907 | 0 to 1740 psig / 120 bar | Stainless Steel for Reactive Gases | 5/8" x 18UN C10 | 3/16" Barb 4.8mm | 60 psig - 4.1 bar | Stainless Steel 0 to 3000 psig 220 bar | 0.280 Kg |
Warranty:All regulators are warranted for 12 months.
| Model | 907 |
|---|---|
| Maximum Inlet Pressure | 0 to 1740 psig / 120 bar |
| For Reactive Gases and/or Non-reactive Gases | Stainless Steel for Reactive Gases |
| Inlet Connection | 5/8" x 18UN C10 |
| Outlet Connection | 3/16" Barb 4.8mm |
| Outlet Pressure | 60 psig - 4.1 bar |
| Gauge | Stainless Steel 0 to 3000 psig 220 bar |
| Weight Kg | 0.280 Kg |

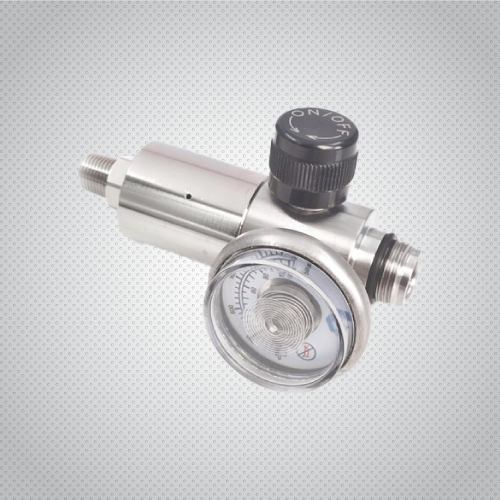

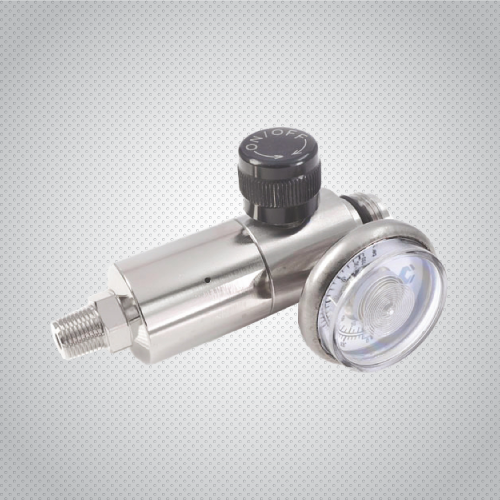

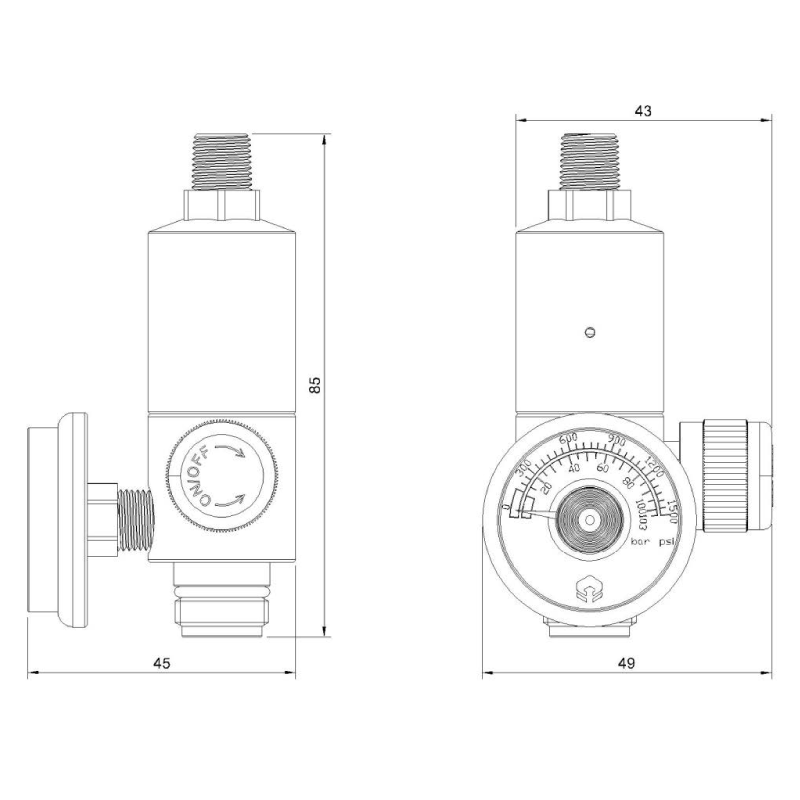

Model 908 Fixed Flow Regulator-C10-1/8" NPT-M-Brass NP
The Fixed Flow Regulator-C10-1/8" NPT-M uses a single stage design which allows the end user to obtain a preset constant flow rate. Used for calibration gases and handheld gas detectors.
Materials of Construction
| Part | Material |
|---|---|
| Body | Stainless Steel |
| Cap | Brass NP |
| Piston | Brass |
| Seats and Seals | Teflon, Viton |
| Flow | Fixed as per customers requirement - 0.1 to 8.0 L/Mn |
Model Details
| Model | Maximum Inlet Pressure | For Reactive Gases and/or Non-reactive Gases | Inlet Connection | Outlet Connection | Outlet Pressure | Gauge | Weight Kg |
|---|---|---|---|---|---|---|---|
| 908 | 0 to 1200 psig / 83 bar | Brass NP for Non-reactive Gases | 5/8" x 18UN C10 | 1/8" NPT Male | 60 psig - 4.1 bar | Brass 0 to 1200 psig / 103 bar | 0.300 Kg |
Warranty:All regulators are warranted for 12 months.
| Model | 908 |
|---|---|
| Maximum Inlet Pressure | 0 to 1200 psig / 83 bar |
| For Reactive Gases and/or Non-reactive Gases | Brass NP for Non-reactive Gases |
| Inlet Connection | 5/8" x 18UN C10 |
| Outlet Connection | 1/8" NPT Male |
| Outlet Pressure | 60 psig - 4.1 bar |
| Gauge | Brass 0 to 1200 psig / 103 bar |
| Weight Kg | 0.300 Kg |

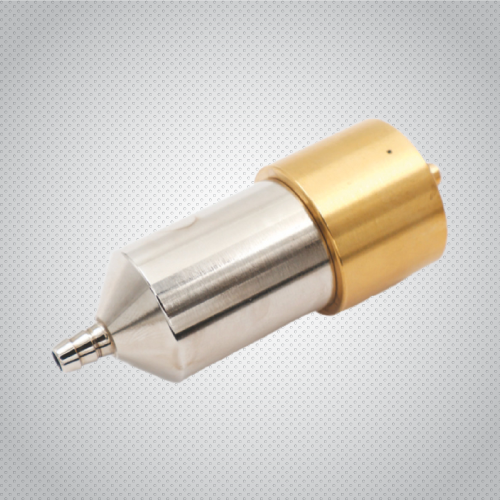

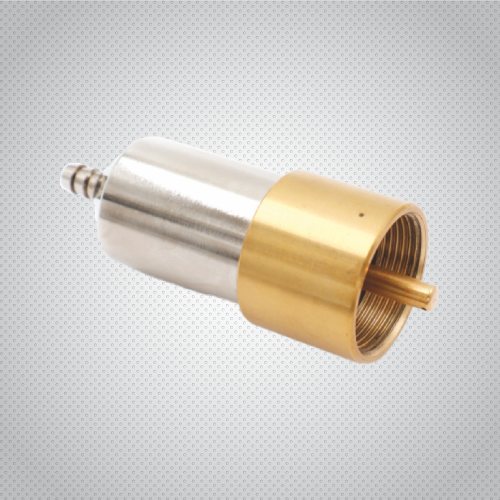

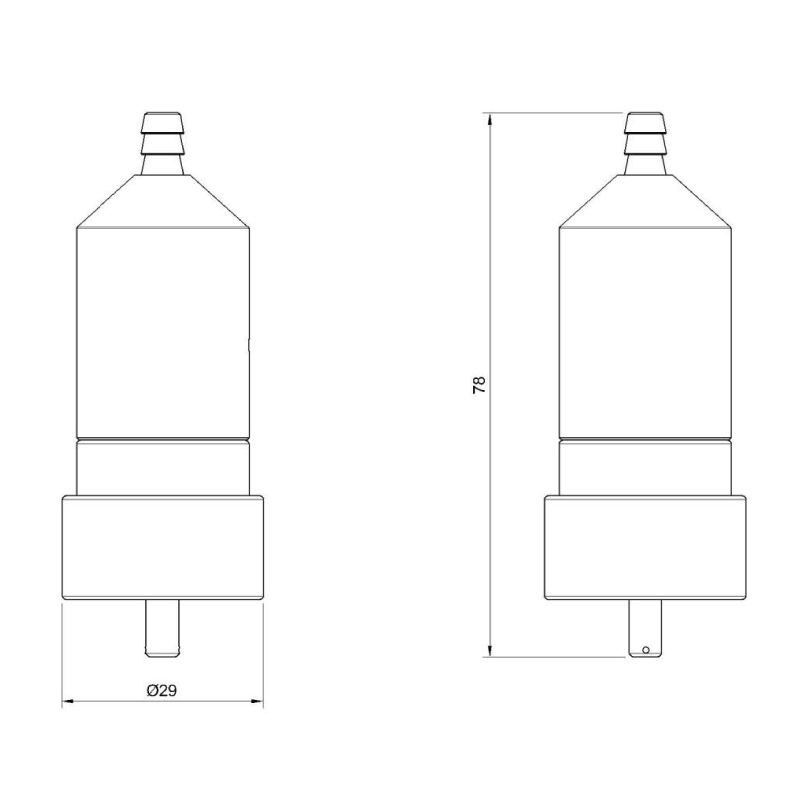

Model 909 Mini Fixed Flow Regulator-CGA600-Brass NP
The Mini Fixed Flow Regulator-CGA600 uses a single stage design which allows the end user to obtain a preset constant flow rate. Used for calibration gases and handheld gas detectors. This design does not have a pressure gauge and a on/off knob which makes it a economical option.
Materials of Construction
| Part | Material |
|---|---|
| Body | Brass |
| Cap | Brass Nickel Plated |
| Piston | Brass |
| Seats and Seals | Teflon, Viton |
| Flow | Fixed as per customers requirement - 0.1 to 8.0 L/Mn |
Model Details
| Model | Maximum Inlet Pressure | For Reactive Gases and/or Non-reactive Gases | Inlet Connection | Outlet Connection | Outlet Pressure | Gauge | Weight Kg |
|---|---|---|---|---|---|---|---|
| 909 | 0 to 600 psig / 41 bar | Brass NP for Non-reactive Gases | CGA600 - 1" x 20 UN | 3/16" Hose Barb | 60 psig - 4.1 bar | No Gauge | 0.230 Kg |
Warranty:All regulators are warranted for 12 months.
| Model | 909 |
|---|---|
| Maximum Inlet Pressure | 0 to 600 psig / 41 bar |
| For Reactive Gases and/or Non-reactive Gases | Brass NP for Non-reactive Gases |
| Inlet Connection | CGA600 - 1" x 20 UN |
| Outlet Connection | 3/16" Hose Barb |
| Outlet Pressure | 60 psig - 4.1 bar |
| Gauge | No Gauge |
| Weight Kg | 0.230 Kg |

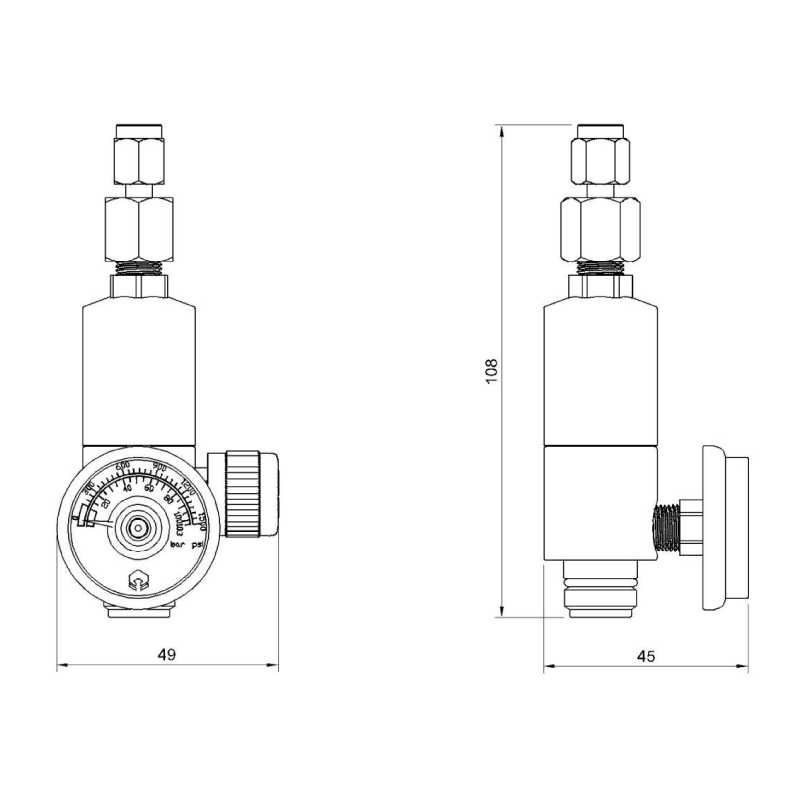

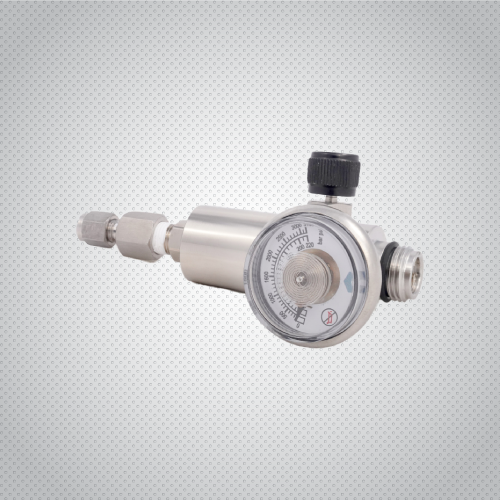

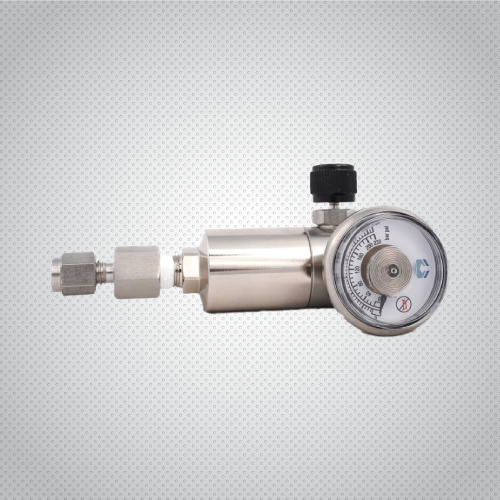

Model 910 Fixed Flow Regulator-BNP-Outlet 1/8" Comp Fitting
The Fixed Flow Regulator-C10-Brass NP uses a single stage design which allows the end user to obtain a preset constant flow rate. Used for calibration gases and handheld gas detectors.
Materials of Construction
| Part | Material |
|---|---|
| Body | Stainless Steel |
| Cap | Brass Nickel Plated |
| Piston | Brass |
| Comp fittings | Stainless Steel |
| Seats and Seals | Teflon, Viton |
| Flow | Fixed as per customers requirement - 0.1 to 8.0 L/Mn |
Model Details
| Model | Maximum Inlet Pressure | For Reactive Gases and/or Non-reactive Gases | Inlet Connection | Outlet Connection | Outlet Pressure | Gauge | Weight Kg |
|---|---|---|---|---|---|---|---|
| 910 | 0 to 1200 psig / 83 bar | Brass NP for Non-reactive Gases | 5/8" x 18UN C10 | 1/8" Compression fitting | 60 psig - 4.1 bar Brass | 0 to 1500 psig 103 bar | 0.266 Kg |
Warranty:All regulators are warranted for 12 months.
| Model | 910 |
|---|---|
| Maximum Inlet Pressure | 0 to 1200 psig / 83 bar |
| For Reactive Gases and/or Non-reactive Gases | Brass NP for Non-reactive Gases |
| Inlet Connection | 5/8" x 18UN C10 |
| Outlet Connection | 1/8" Compression fitting |
| Outlet Pressure | 60 psig - 4.1 bar Brass |
| Gauge | 0 to 1500 psig 103 bar |
| Weight Kg | 0.266 Kg |

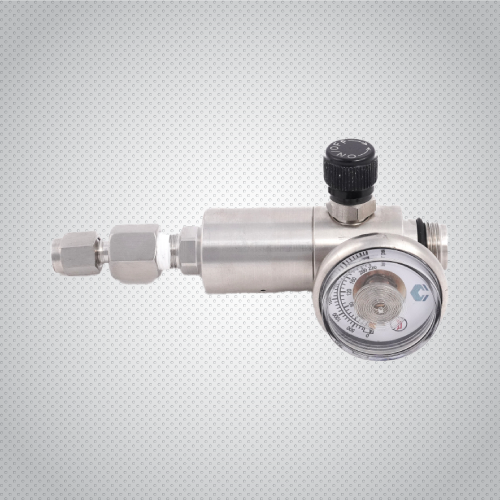

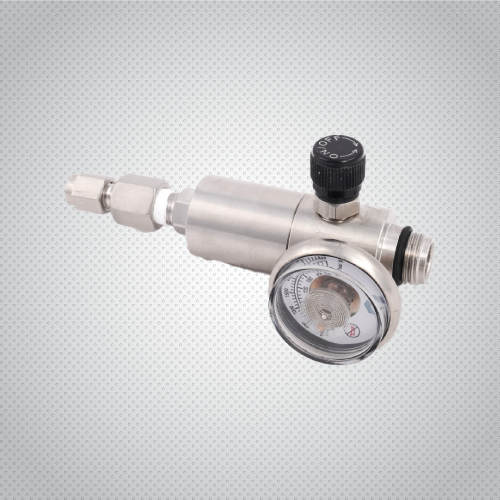

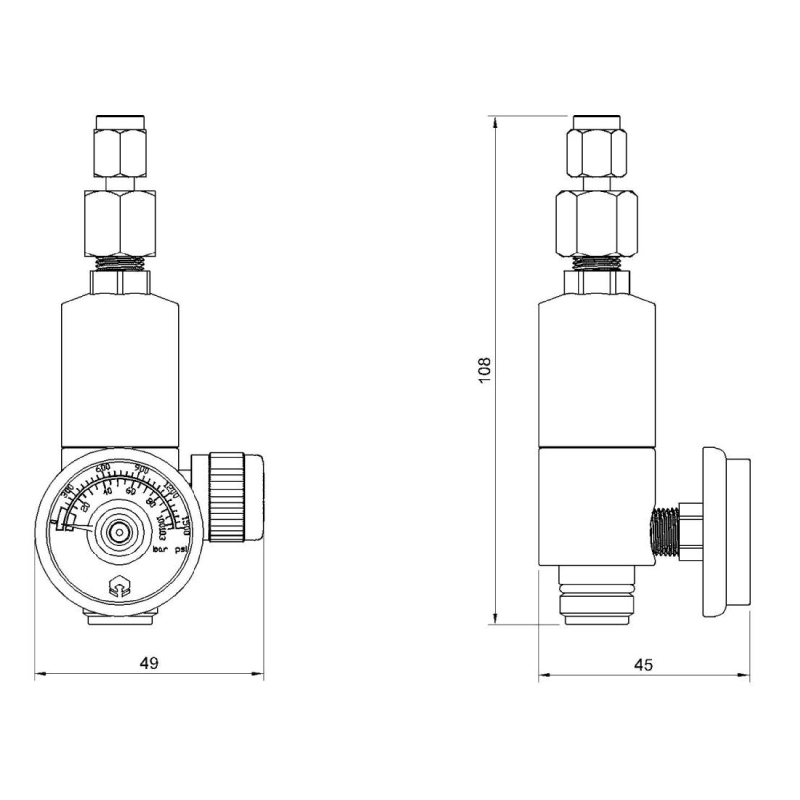

Model 911 Fixed Flow Regulator-55-Outlet 1/8" Comp Fitting
The Fixed Flow Regulator-C10-SS uses a single stage design which allows the end user to obtain a preset constant flow rate. Used for calibration gases and handheld gas detectors.
Materials of Construction
| Part | Material |
|---|---|
| Body | Stainless Steel |
| Cap | Stainless Steel |
| Piston | Stainless Steel |
| Seats and Seals | Teflon, Viton |
| Flow | Fixed as per customers requirement - 0.1 to 8.0 L/Mn |
Model Details
| Model | Maximum Inlet Pressure | For Reactive Gases and/or Non-reactive Gases | Inlet Connection | Outlet Connection | Outlet Pressure | Gauge | Weight Kg |
|---|---|---|---|---|---|---|---|
| 911 | 0 to 1200 psig / 83 bar | Stainless Steel for Reactive Gases | 5/8" x 18UN C10 | 1/8" Compression Fitting | 60 psig - 4.1 bar | Stainless Steel 0 to 1200 psig / 103 bar | 0.258 Kg |
Warranty:All regulators are warranted for 12 months.
| Model | 911 |
|---|---|
| Maximum Inlet Pressure | 0 to 1200 psig / 83 bar |
| For Reactive Gases and/or Non-reactive Gases | Stainless Steel for Reactive Gases |
| Inlet Connection | 5/8" x 18UN C10 |
| Outlet Connection | 1/8" Compression Fitting |
| Outlet Pressure | 60 psig - 4.1 bar |
| Gauge | Stainless Steel 0 to 1200 psig / 103 bar |
| Weight Kg | 0.258 Kg |
