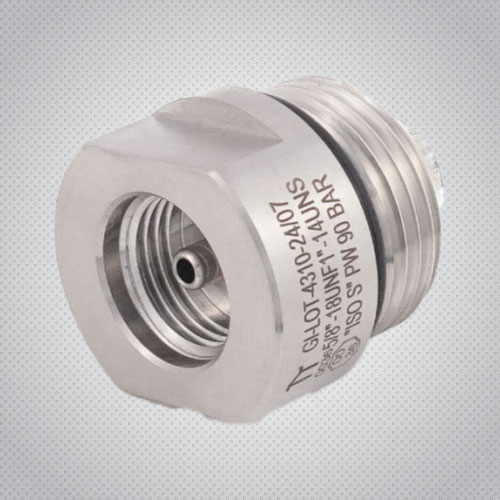

C10 Valve 100 Series

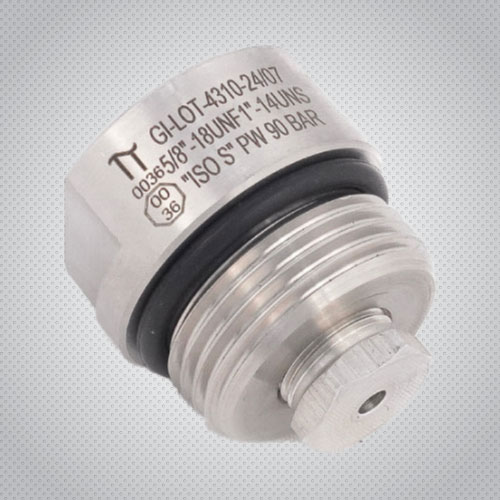

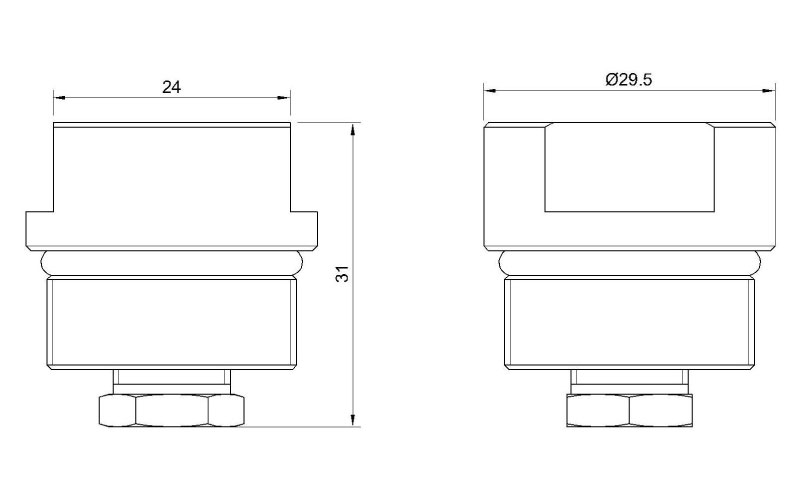

Model 101 C10-R-1 "-5/8"-SS-π
The C10 valve approved to EN ISO 17879 & ADR is a self-closing cylinder valve used for portable and refillable calibration gas cylinders.
Materials of Construction
| Part | Material |
|---|---|
| Body | Stainless Steel |
| Valve Pin | Stainless Steel |
| Valve Seat | Stainless Steel |
| Seats and Seals | Viton |
Model Details
| Model | Working Pressure | For Reactive Gases and/or Non-reactive Gases | Inlet Connection | Outlet Connection | Weight Kg |
|---|---|---|---|---|---|
| 101 | 0 to 1305 psig / 90 bar | Stainless Steel for Reactive Gases and Non-reactive Gases | 1" x 14UN | 5/8" x 18UN | 0.090 Kg |
Warranty:All valves are warranted for 12 months.
| Model | 101 |
|---|---|
| Working Pressure | 0 to 1305 psig / 90 bar |
| For Reactive Gases and/or Non-reactive Gases | Stainless Steel for Reactive Gases and Non-reactive Gases |
| Inlet Connection | 1" x 14UN |
| Outlet Connection | 5/8" x 18UN |
| Weight Kg | 0.090 Kg |

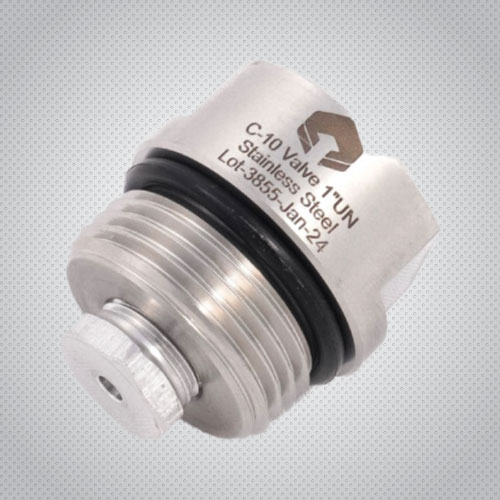

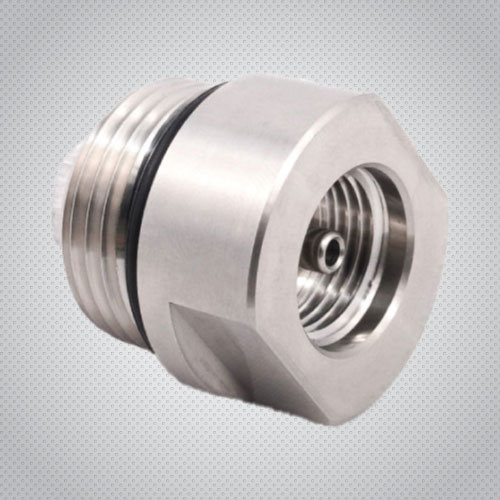

Model 102 C10-R-1 "-5/8"-SS
The C10 valve is a self-closing cylinder valve used for portable And refillable calibration gas cylinders
Materials of Construction
| Part | Material |
|---|---|
| Body | Stainless Steel |
| Valve Pin | Stainless Steel |
| Valve Seat | Stainless Steel |
| Seats and Seals | Viton |
Model Details
| Model | Working Pressure | For Reactive Gases and/or Non-reactive Gases | Inlet Connection | Outlet Connection | Weight Kg |
|---|---|---|---|---|---|
| 102 | 0 to 1305 psig / 90 bar | Stainless Steel for Reactive Gases and Non-reactive Gases | 1" x 14UN | 5/8" x 18UN | 0.090 Kg |
Warranty:All valves are warranted for 12 months.
| Model | 102 |
|---|---|
| Working Pressure | 0 to 1305 psig / 90 bar |
| For Reactive Gases and/or Non-reactive Gases | Stainless Steel for Reactive Gases and Non-reactive Gases |
| Inlet Connection | 1" x 14UN |
| Outlet Connection | 5/8" x 18UN |
| Weight Kg | 0.090 Kg |

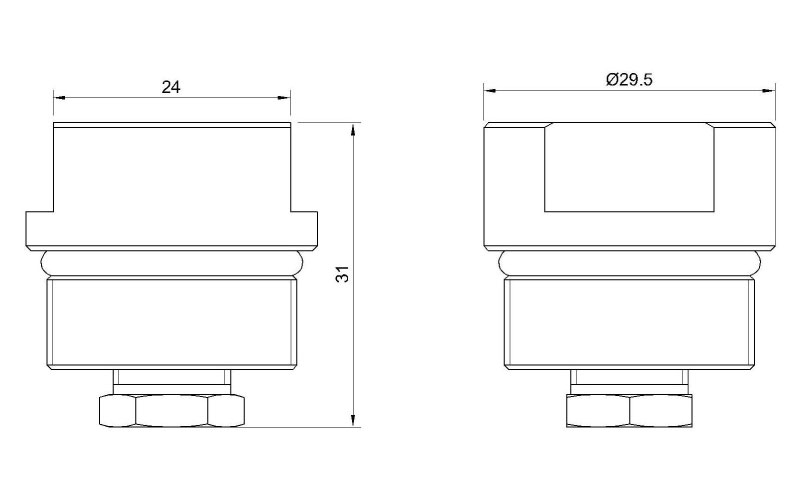

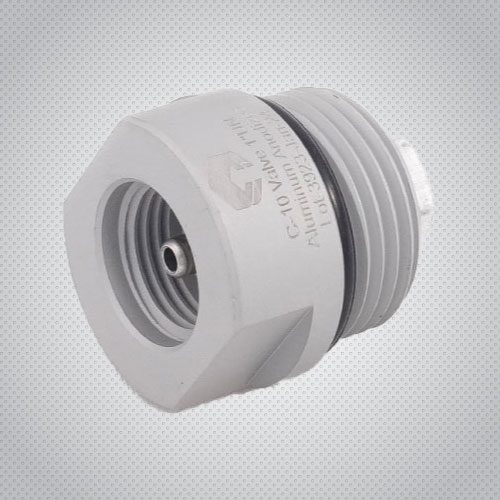

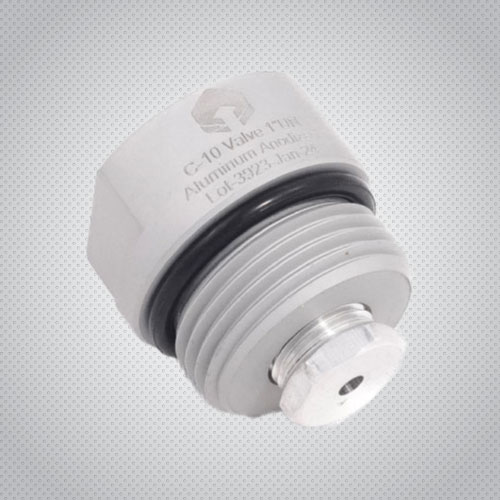

Model 103 C10-R-1"-5/8"-AI
The C10 valve is a self-closing cylinder valve used for portable, refillable calibration gas cylinders.
Materials of Construction
| Part | Material |
|---|---|
| Body | Aluminum Silver Anodized |
| Valve Pin | Stainless Steel |
| Valve Seat | Stainless Steel |
| Seats and Seals | Viton & Buna-N |
Model Details
| Model | Working Pressure | For Reactive Gases and/or Non-reactive Gases | Inlet Connection | Outlet Connection | Weight Kg |
|---|---|---|---|---|---|
| 103 | 0 to 1305 psig / 90 bar | Aluminum Anodized for Reactive Gases & non-reactive gases | 1" x 14UN | 5/8" x 18UN | 0.035 Kg |
Warranty:All valves are warranted for 12 months.
| Model | 103 |
|---|---|
| Working Pressure | 0 to 1305 psig / 90 bar |
| For Reactive Gases and/or Non-reactive Gases | Aluminum Anodized for Reactive Gases & non-reactive gases |
| Inlet Connection | 1" x 14UN |
| Outlet Connection | 5/8" x 18UN |
| Weight Kg | 0.035 Kg |

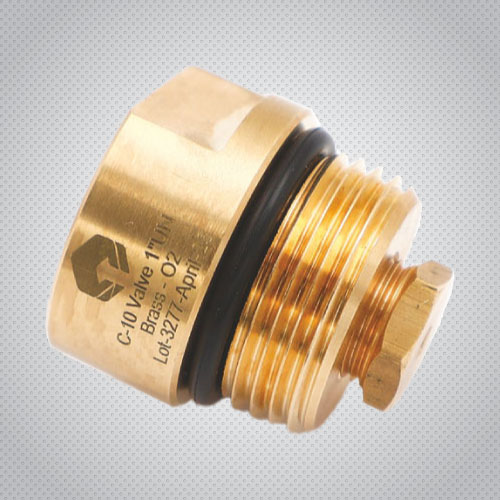

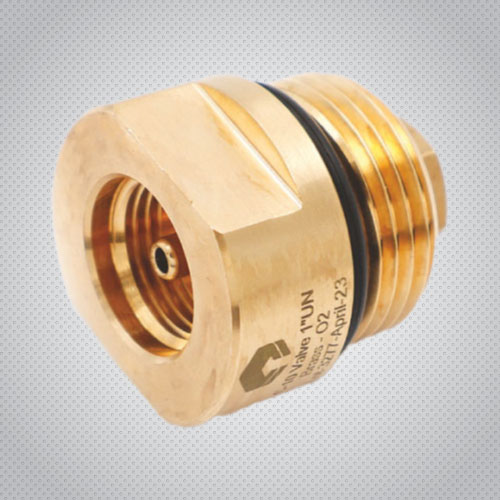

Model 104 C10-R-1"-5/8"-Brass
The C10 valve is a self-closing cylinder valve used for portable, refillable calibration gas cylinders.
Materials of Construction
| Part | Material |
|---|---|
| Body | Brass |
| Valve Pin | Brass |
| Valve Seat | Brass |
| Seats and Seals | Viton |
Model Details
| Model | Working Pressure | For Reactive Gases and/or Non-reactive Gases | Inlet Connection | Outlet Connection | Weight Kg |
|---|---|---|---|---|---|
| 104 | 0 to 1305 psig / 90 bar | Brass for non-reactive gases | 1" x 14UN | 5/8" x 18UN | 0.100 Kg |
Warranty:All valves are warranted for 12 months.
| Model | 104 |
|---|---|
| Working Pressure | 0 to 1305 psig / 90 bar |
| For Reactive Gases and/or Non-reactive Gases | Brass for non-reactive gases |
| Inlet Connection | 1" x 14UN |
| Outlet Connection | 5/8" x 18UN |
| Weight Kg | 0.100 Kg |

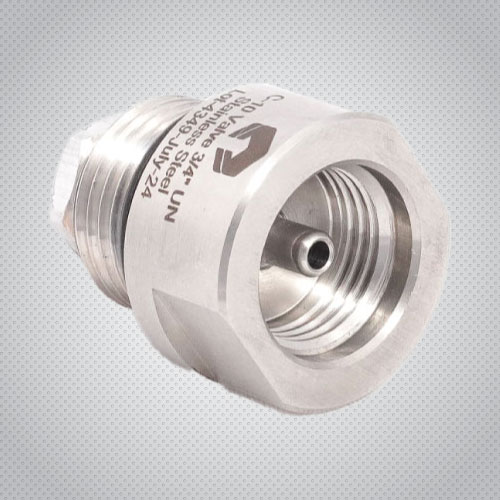

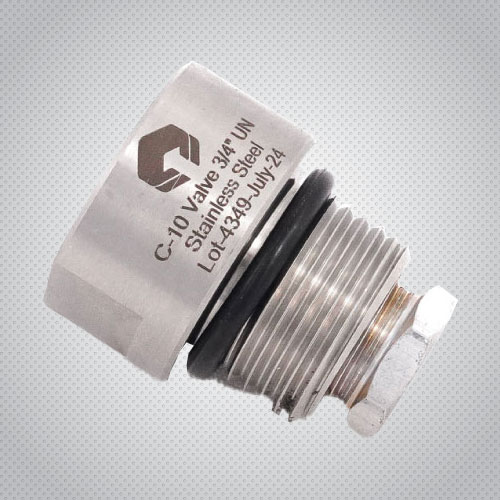

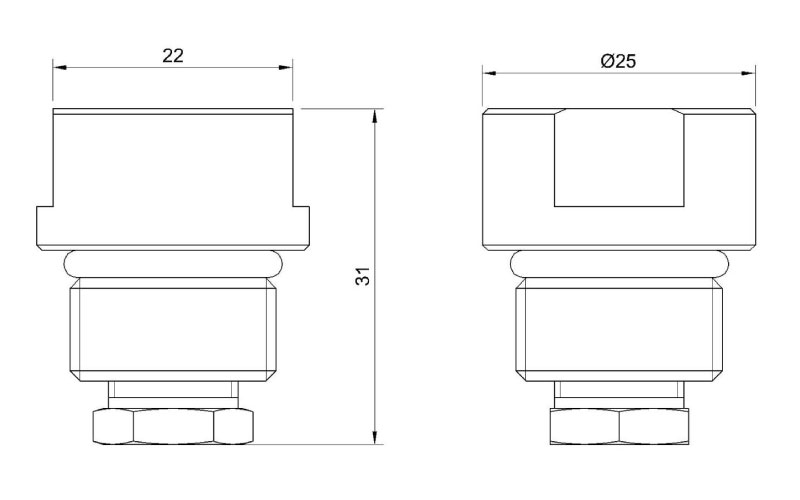

Model 105 C10-R-3/4"-5/8"-SS
The C10 valve is a self-closing cylinder valve used for portable, refillable calibration gas cylinders.
Materials of Construction
| Part | Material |
|---|---|
| Body | Stainless Steel |
| Valve Pin | Stainless Steel |
| Valve Seat | Stainless Steel |
| Seats and Seals | Viton |
Model Details
| Model | Working Pressure | For Reactive Gases and/or Non-reactive Gases | Inlet Connection | Outlet Connection | Weight Kg |
|---|---|---|---|---|---|
| 105 | 0 to 1305 psig / 90 bar | Stainless Steel for Reactive Gases and Non-reactive Gases | ¾" x 16 UN | 5/8" x 18UN | 0.053 Kg |
Warranty:All valves are warranted for 12 months.
| Model | 105 |
|---|---|
| Working Pressure | 0 to 1305 psig/ 90 bar |
| For Reactive Gases and/or Non-reactive Gases | Stainless Steel for Reactive Gases and Non-reactive Gases |
| Inlet Connection | ¾" x 16 UN |
| Outlet Connection | 5/8" x 18UN |
| Weight Kg | 0.053 Kg |

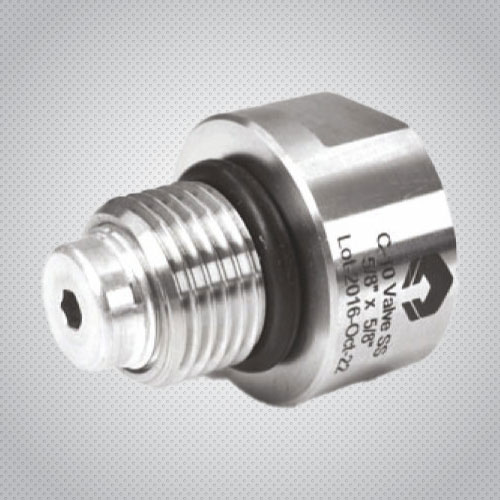

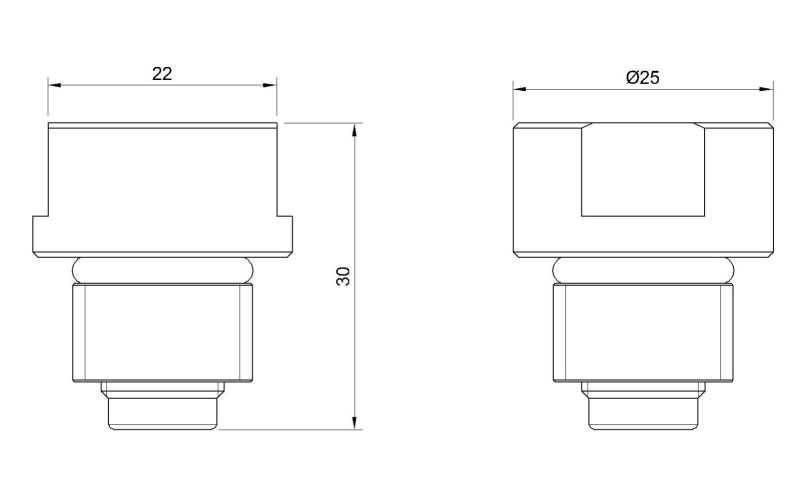

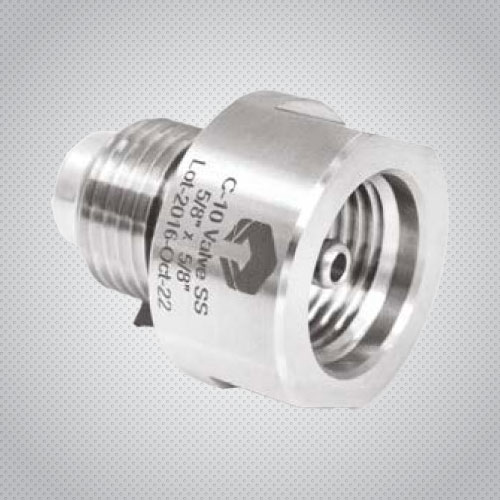

Model 106 C10-R-5/8"-5/8"-SS
The C10 valve is a self-closing cylinder valve used for portable, refillable calibration gas cylinders.
Materials of Construction
| Part | Material |
|---|---|
| Body | Stainless Steel |
| Valve Pin | Stainless Steel |
| Valve Seat | Stainless Steel |
| Seats and Seals | Viton |
Model Details
| Model | Working Pressure | For Reactive Gases and/or Non-reactive Gases | Inlet Connection | Outlet Connection | Weight Kg |
|---|---|---|---|---|---|
| 106 | 0 to 1305 psig / 90 bar | Stainless Steel for Reactive Gases and Non-reactive Gases | 5/8" x 18UN | 5/8" x 18UN | 0.053 Kg |
Warranty:All valves are warranted for 12 months.
| Model | 106 |
|---|---|
| Working Pressure | 0 to 1305 psig / 90 bar |
| For Reactive Gases and/or Non-reactive Gases | Stainless Steel for Reactive Gases and Non-reactive Gases |
| Inlet Connection | 5/8" x 18UN |
| Outlet Connection | 5/8" x 18UN |
| Weight Kg | 0.053 Kg |

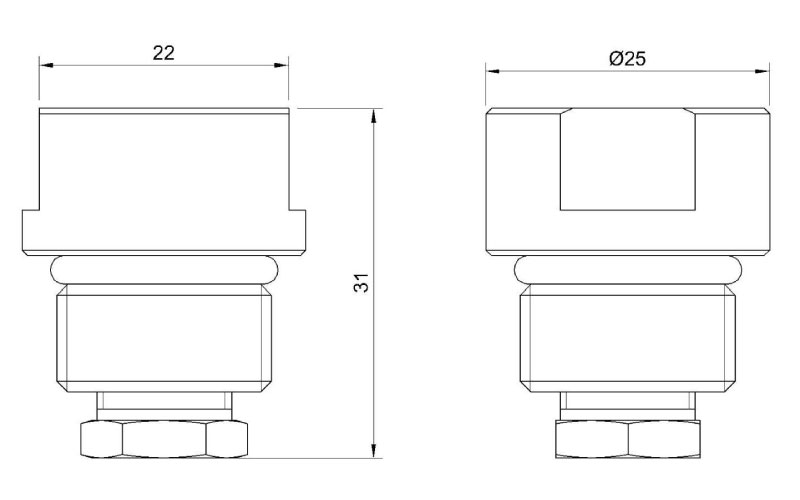

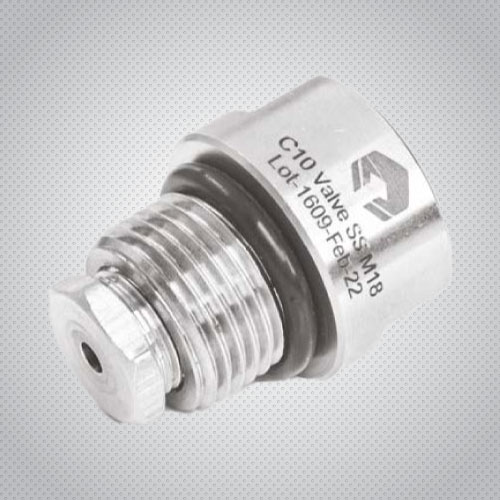

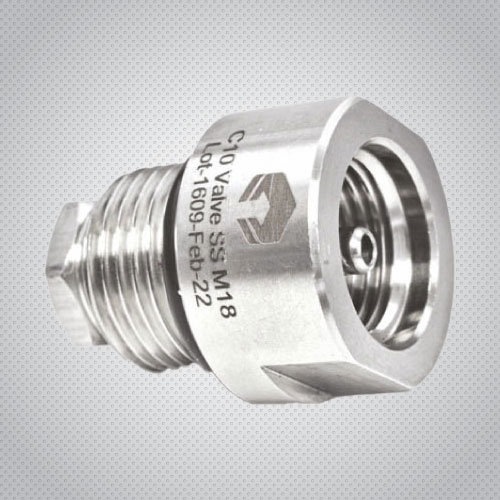

Model 107 C10-R-M18-5/8"-SS
The C10 valve is a self-closing cylinder valve used for portable, refillable calibration gas cylinders.
Materials of Construction
| Part | Material |
|---|---|
| Body | Stainless Steel |
| Valve Pin | Stainless Steel |
| Valve Seat | Stainless Steel |
| Seats and Seals | Viton |
Model Details
| Model | Working Pressure | For Reactive Gases and/or Non-reactive Gases | Inlet Connection | Outlet Connection | Weight Kg |
|---|---|---|---|---|---|
| 107 | 0 to 1305 psig/ 90 bar | Stainless Steel for Reactive Gases and Non-reactive Gases | M18 x 1.5 | 5/8" x 18UN | 0.061 Kg |
Warranty:All valves are warranted for 12 months.
| Model | 107 |
|---|---|
| Working Pressure | 0 to 1305 psig/ 90 bar |
| For Reactive Gases and/or Non-reactive Gases | Stainless Steel for Reactive Gases and Non-reactive Gases |
| Inlet Connection | M18 x 1.5 |
| Outlet Connection | 5/8" x 18UN |
| Weight Kg | 0.061 Kg |

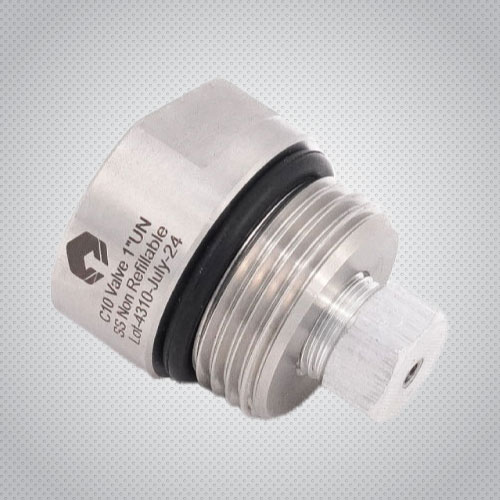

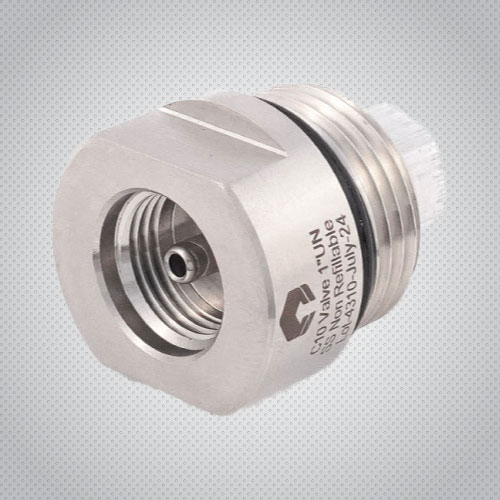

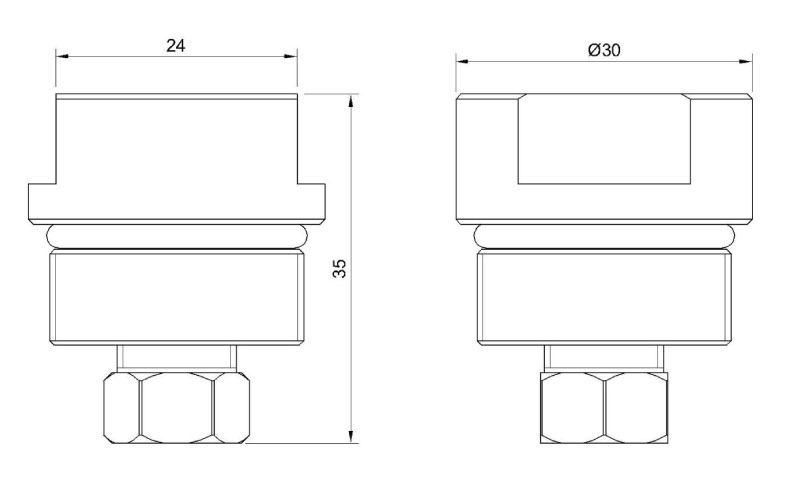

Model 108 C10-NR-1"-5/8"-SS
The non-refillable C10 valve is a self-closing cylinder valve used for portable, non-refillable calibration gas cylinders.
Materials of Construction
| Part | Material |
|---|---|
| Body | Stainless Steel |
| Valve Pin | Stainless Steel |
| Valve Seat | Stainless Steel |
| Seats and Seals | Viton |
Model Details
| Model | Working Pressure | For Reactive Gases and/or Non-reactive Gases | Inlet Connection | Outlet Connection | Weight Kg |
|---|---|---|---|---|---|
| 108 | 0 to 1305 psig/ 90 bar | Stainless Steel for Reactive Gases and Non-reactive Gases | 1" x 14UN | 5/8" x 18UN | 0.091 Kg |
Warranty:All valves are warranted for 12 months.
| Model | 108 |
|---|---|
| Working Pressure | 0 to 1305 psig/ 90 bar |
| For Reactive Gases and/or Non-reactive Gases | Stainless Steel for Reactive Gases and Non-reactive Gases |
| Inlet Connection | 1" x 14UN |
| Outlet Connection | 5/8" x 18UN |
| Weight Kg | 0.091 Kg |

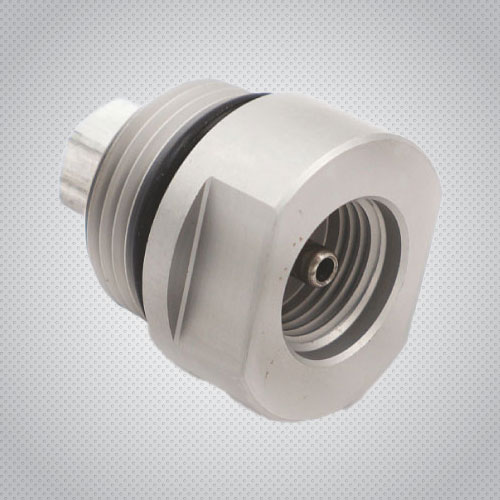

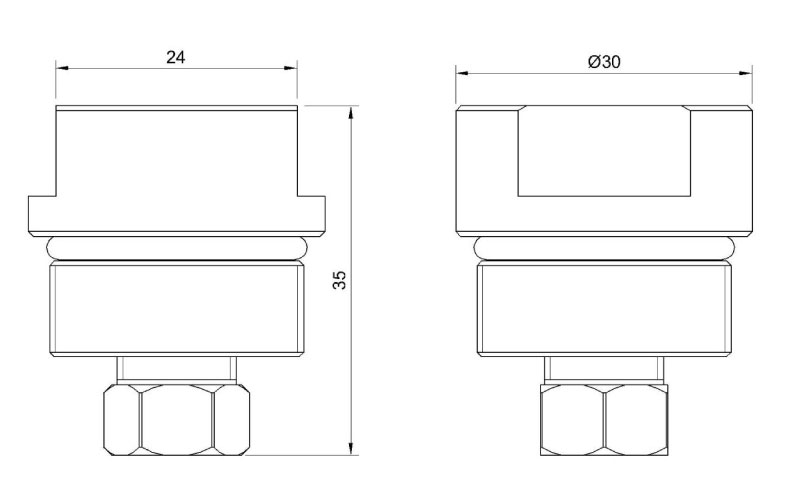

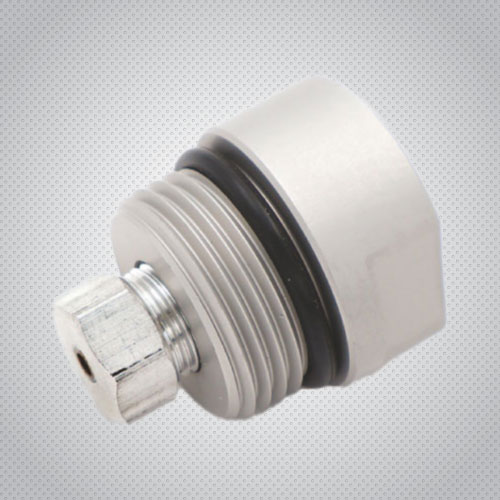

Model 109 C10-NR-1"-5/8"-AI
The non-refillable C10 valve is a self-closing cylinder valve used for portable, non-refillable calibration gas cylinders.
Materials of Construction
| Part | Material |
|---|---|
| Body | Aluminum Silver Anodizing |
| Valve Pin | Stainless Steel |
| Valve Seat | Stainless Steel |
| Seats and Seals | Viton & Buna-N |
Model Details
| Model | Working Pressure | For Reactive Gases and/or Non-reactive Gases | Inlet Connection | Outlet Connection | Weight Kg |
|---|---|---|---|---|---|
| 109 | 0 to 1305 psig/ 90 bar | Aluminum for non - reactive gases | 1" x 14UN | 5/8" x 18UN | 0.037 Kg |
Warranty:All valves are warranted for 12 months.
| Model | 109 |
|---|---|
| Working Pressure | 0 to 1305 psig/ 90 bar |
| For Reactive Gases and/or Non-reactive Gases | Aluminum for non - reactive gases |
| Inlet Connection | 1" * 14UN |
| Outlet Connection | 5/8" x 18UN |
| Weight Kg | 0.037 Kg |

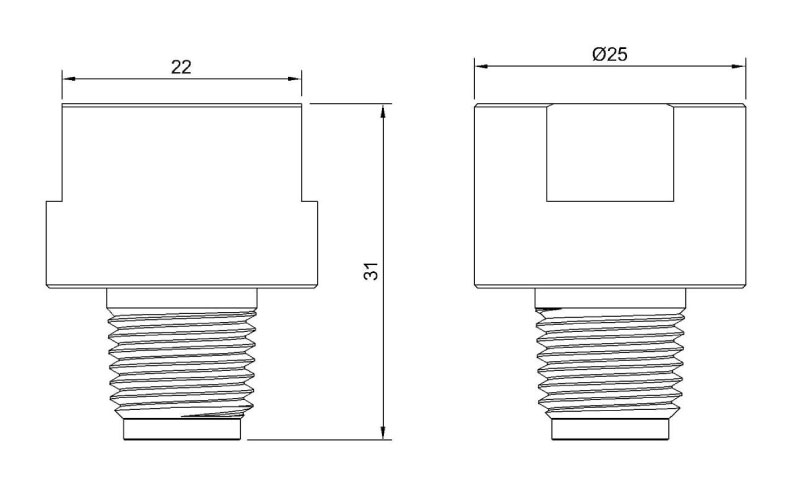

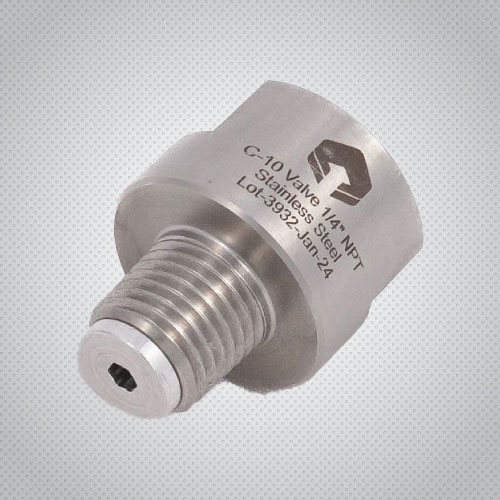

Model 110 C10-R-1/4"-5/8"-SS
The C10 valve is a self-closing cylinder valve used for portable, refillable calibration gas cylinders.
Materials of Construction
| Part | Material |
|---|---|
| Body | Stainless Steel |
| Valve Pin | Stainless Steel |
| Valve Seat | Stainless Steel |
| Seats and Seals | Viton |
Model Details
| Model | Working Pressure | For Reactive Gases and/or Non-reactive Gases | Inlet Connection | Outlet Connection | Weight Kg |
|---|---|---|---|---|---|
| 110 | 0 to 1305 psig/ 90 bar | Stainless Steel for Reactive Gases and non-reactive gases | ¼" NPTM | 5/8" x 18UN | 0.057 Kg |
Warranty:All valves are warranted for 12 months.
| Model | 110 |
|---|---|
| Working Pressure | 0 to 1305 psig/ 90 bar |
| For Reactive Gases and/or Non-reactive Gases | Stainless Steel for Reactive Gases and non-reactive gases |
| Inlet Connection | ¼" NPTM |
| Outlet Connection | 5/8" x 18UN |
| Weight Kg | 0.057 Kg |

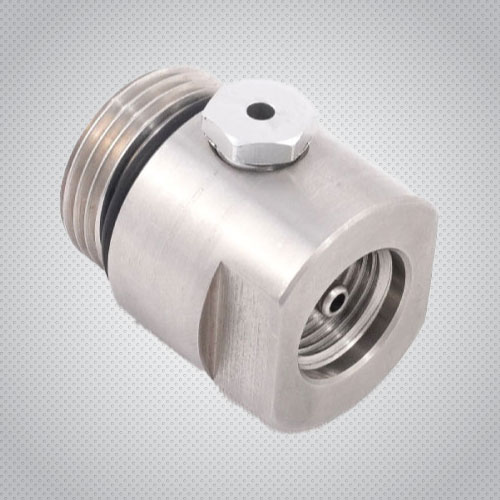

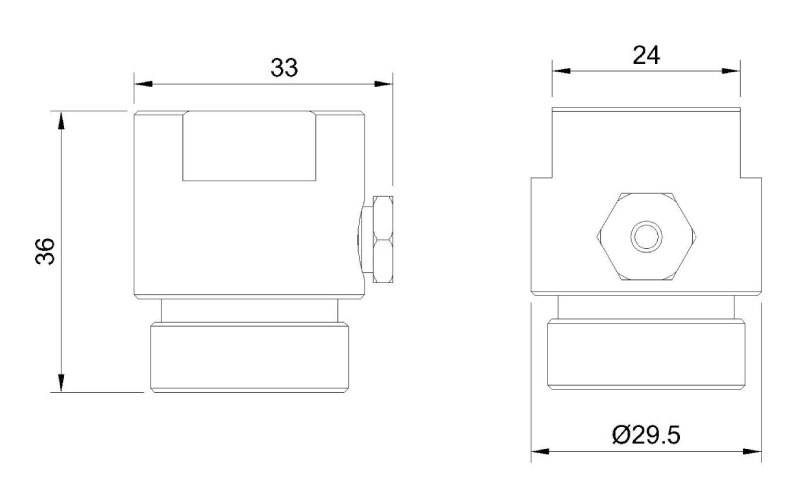

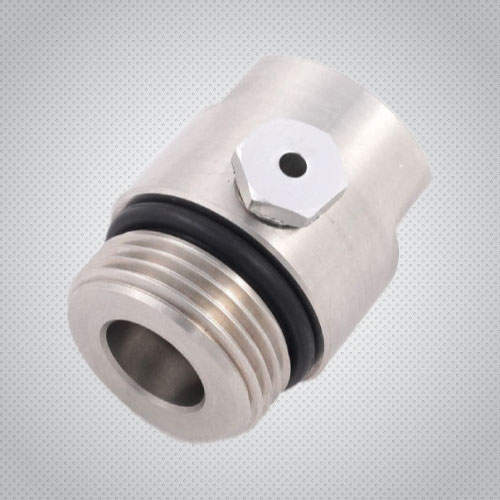

Model 111 C10-R-1"-5/8"-SS-BD
The C10 valve with Burst Disc is a self-closing cylinder valve used for portable, refillable calibration gas cylinders. This valve has a Burst Disc safety mechanism.
Materials of Construction
| Part | Material |
|---|---|
| Body | Stainless Steel |
| Valve Pin | Stainless Steel |
| Valve Seat | Stainless Steel |
| Seats and Seals | Viton |
Model Details
| Model | Working Pressure | For Reactive Gases and/or Non-reactive Gases | Inlet Connection | Outlet Connection | Weight Kg |
|---|---|---|---|---|---|
| 111 | Refer table | Stainless Steel for Reactive Gases and non-reactive gases | 1" x 14 UN | 5/8" x 18UN | 0.135 Kg |
| Model | 111 |
|---|---|
| Working Pressure | Refer table |
| For Reactive Gases and/or Non-reactive Gases | Stainless Steel for Reactive Gases and non-reactive gases |
| Inlet Connection | 1" x 14 UN |
| Outlet Connection | 5/8" x 18UN |
| Weight Kg | 0.135 Kg |
| Working Pressure | Burst Disc Pressure |
|---|---|
| 0-600 psi | 0-900 psi @ 63°C |
| 0- 1200 psi | C 0-1750 psi@ 63°C |
Warranty:All valves are warranted for 12 months.

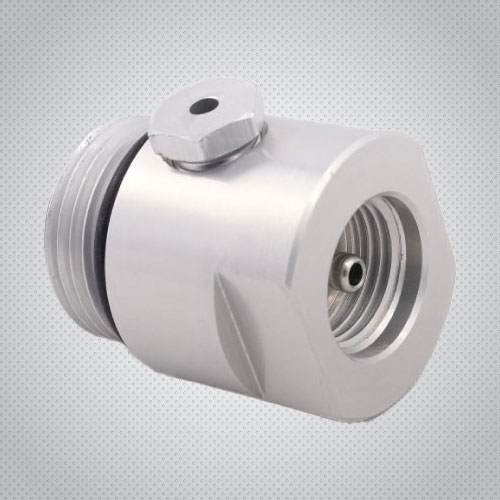

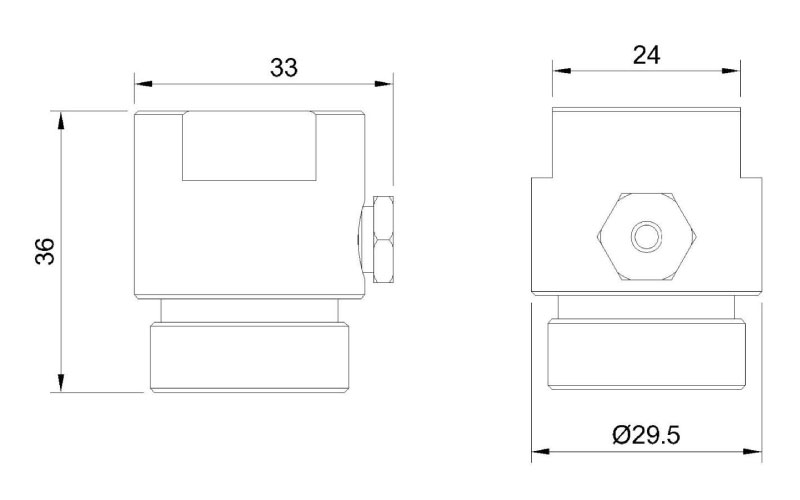

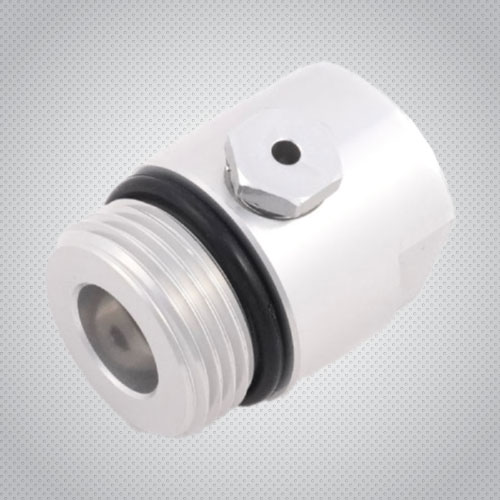

Model 112 C10-R-1"-5/8"-AI-BD
The C10 valve with Burst Disc is a self-closing cylinder valve used for portable, refillable calibration gas cylinders. This valve has a Burst Disc safety mechanism.
Materials of Construction
| Part | Material |
|---|---|
| Body | Aluminum Anodized |
| Valve Pin | Stainless Steel |
| Valve Seat | Stainless Steel |
| Seats and Seals | Viton |
Model Details
| Model | Working Pressure | For Reactive Gases and/or Non-reactive Gases | Inlet Connection | Outlet Connection | Weight Kg |
|---|---|---|---|---|---|
| 112 | 0 to 1305 psig/ 90 bar | Aluminum for Reactive Gases and non-reactive gases | 1" x 14UN | 5/8" x 18UN | 0.057Kg |
Warranty:All valves are warranted for 12 months.
| Model | 112 |
|---|---|
| Working Pressure | 0 to 1305 psig/ 90 bar |
| For Reactive Gases and/or Non-reactive Gases | Aluminum for Reactive Gases and non-reactive gases |
| Inlet Connection | 1" x 14UN |
| Outlet Connection | 5/8" x 18UN |
| Weight Kg | 0.057 Kg |
